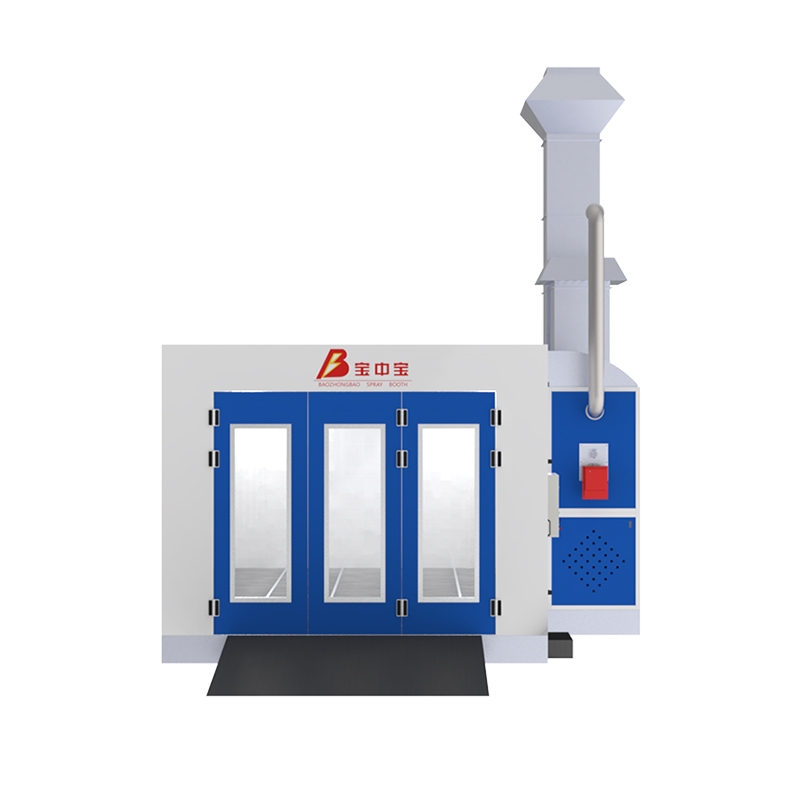

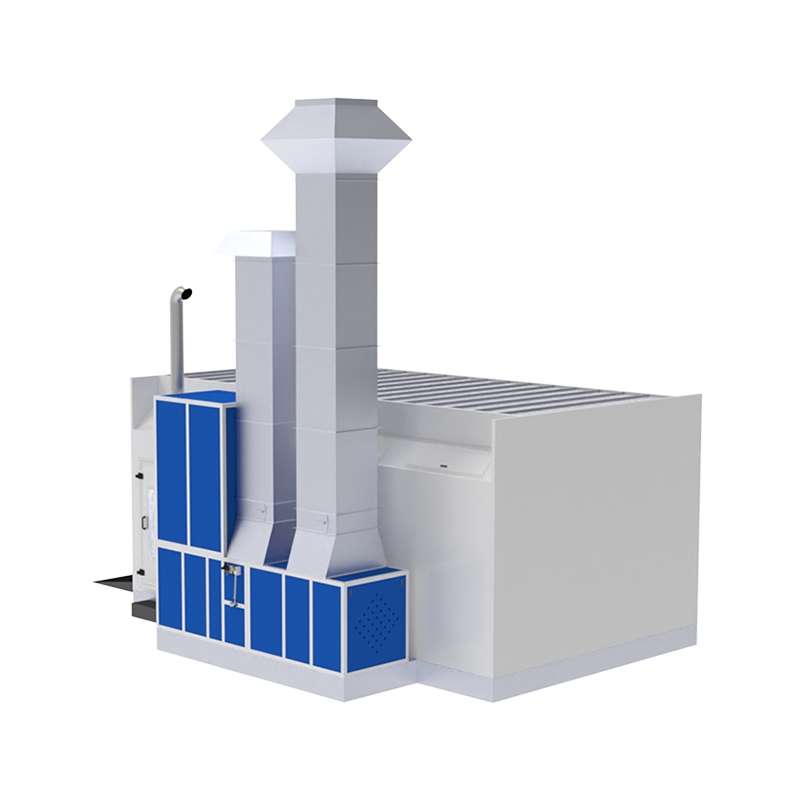

Luxury Model Spray Booth

Project\Model

Luxury Model BZB-007L

Luxury Model BZB-008L

Inner dimension

6900 × 4000 × 2650 (L × W × H)

Wall panel

50mm thick EPS,δ=0.426mm Color steel plate, Sandwich Style,width: 1150mm;

Booth structure

European convex structure(Light Box open inside)

European convex structure(light box open outside)

Main door

Opening size: 3000 × 2600mm (W × H ) ,3 door leaves with Glass Window, Manual folding sheet metal door without edges ,EPS filling; Middle door with push down escape lock.

Personal door

Aluminum alloy frame structure, with glass window and pressure lock ,Enter size: 800 × 2000mm (W × H)

Basement

Height:300mm.Supporting parts are made of bent galvanized steel plates;Full grilles, The grilles are made of 30×5 flat iron, load capacity 700-800kgs/wheel;With 3 piece 900mm wide ramps;

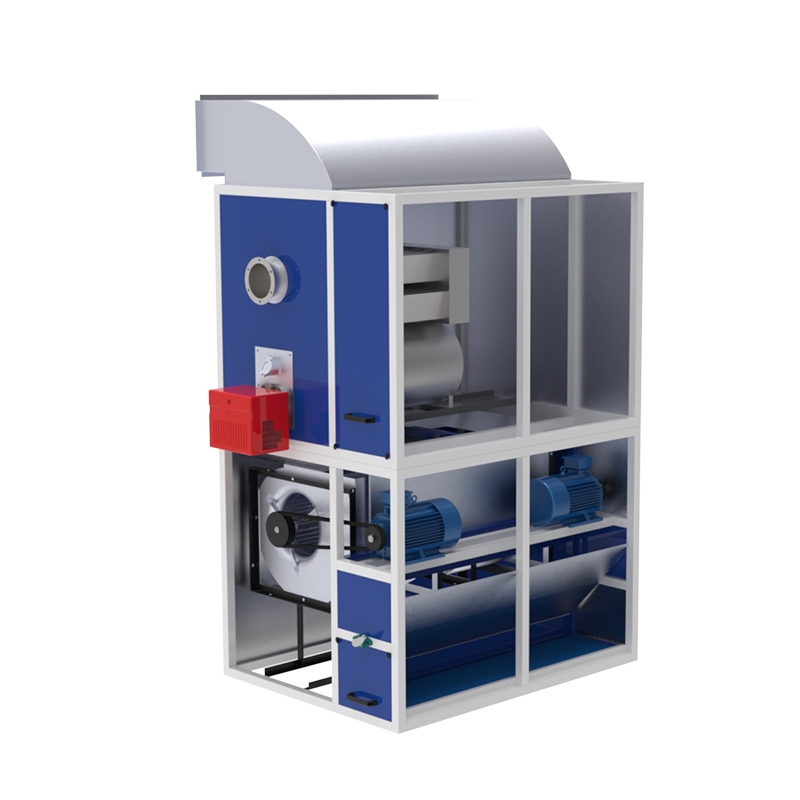

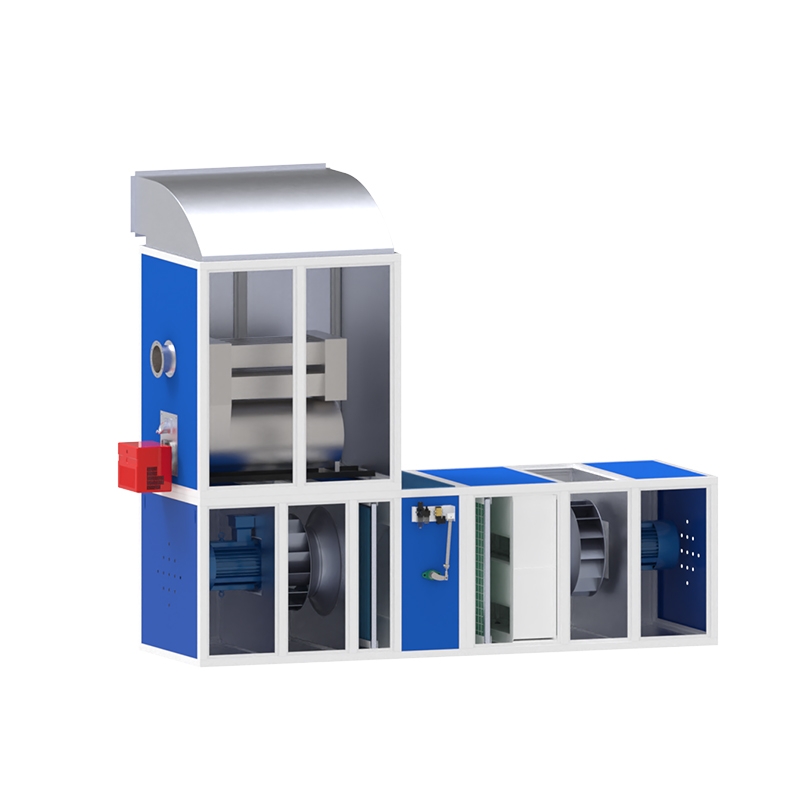

Air cabinet frame

The frame is made of profiled steel material, galvanized steel sheet metal bending mask, filled with rock wool insulation, and powder coated on the surface.

Intake fan

Belt driven double intake centrifugal fan ;Fan model: 400, air volume: 12500m³/h, power: 4KW; Quantity: 2 units, total capacity: 25000m³/h,

Direct drive turbine fan, Model: WDJK800, air volume: 30000m³/h, motor power: 7.5KW; Quantity: 1 set, total capacity: 30000m³/h

Exhaust system

Belt driven double intake centrifugal fan ;Fan model: 400, air volume: 12500m³/h, power: 4KW; Quantity: 2 units, total capacity: 25000m³/h

With manual damper.

Direct drive turbine fan, Model: WDJK800, air volume: 30000m³/h, motor power: 7.5KW; Quantity: 1 set, total capacity: 30000m³/h.

With manual damper

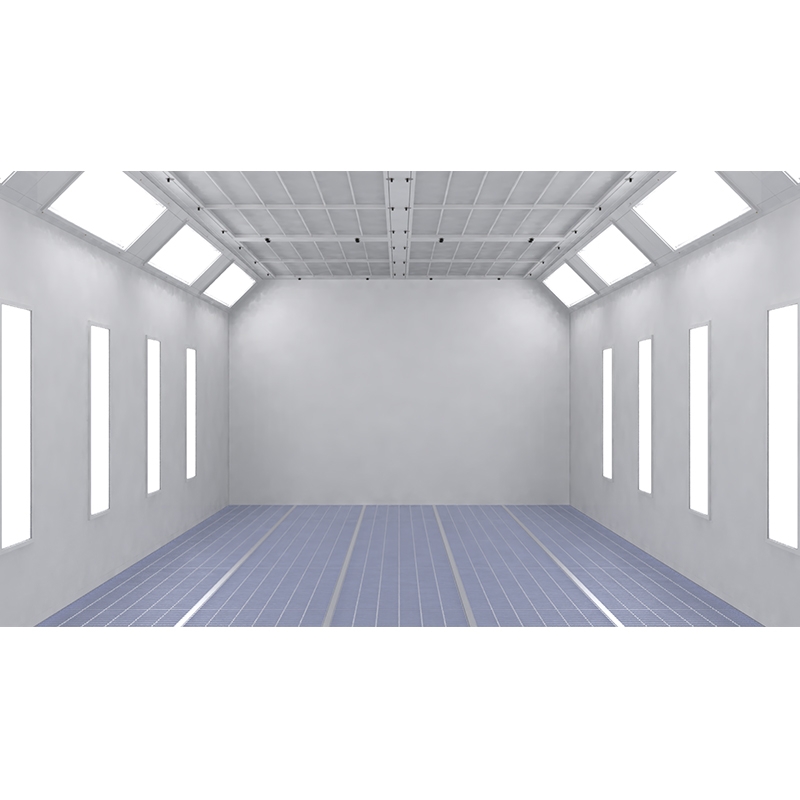

Lighting system

Ceiling: 8 groups × 4 pcs = 32 pcs × 18 W, LED lamp;

Side: 8 groups × 4 pcs = 32 pcs × 18 W, LED lamp

Illumination ≥1000LUX

Filter System

Primary filter：G3 level primary filter,；Top filter: F5 filter cotton 600G; Floor filter: Glass fiber filter cotton; Exhuast filter: Glass fiber cotton + columnar activated carbon

Primary filter：G3 level primary filter；Top filter: F5 filter cotton 600G; Floor filter: Glass fiber filter cotton; Exhuast filter: Glass fiber cotton + activated carbon filter bag

Heating system

Diesel burner + heat exchanger, made of stainless steel (SUS304); RG5S model of Italy Riello diesel burner,burner calorific value: 260,000 Kcal/h;

Air circulation damper

Electric damper

Penumatic damper

Electronic control system

Knob control, the main components use Schneider brand; Intake motor direct start,exhaust motor Y-Detal start.

.Painting, heated air painting, baking, lighting, emergency shutdown switch, fault alarm, cumulative, paint delay stop protection, motor overload and overcurrent protection, fan and heating system interlock. With pressure gauge.

Knob control, the main components use Schneider brand; All motors with Y-Detal start.Painting, heated air painting, baking, lighting, emergency shutdown switch, fault alarm, cumulative, paint delay stop protection, motor overload and overcurrent protection, fan and heating system interlock. With pressure gauge, outlet entry with travel switch to control the compressed air input, filter system with pressure detection device, pressure alarm system

No-load wind speed

≥0.25m/s

Total power

16.8KW

16KW
