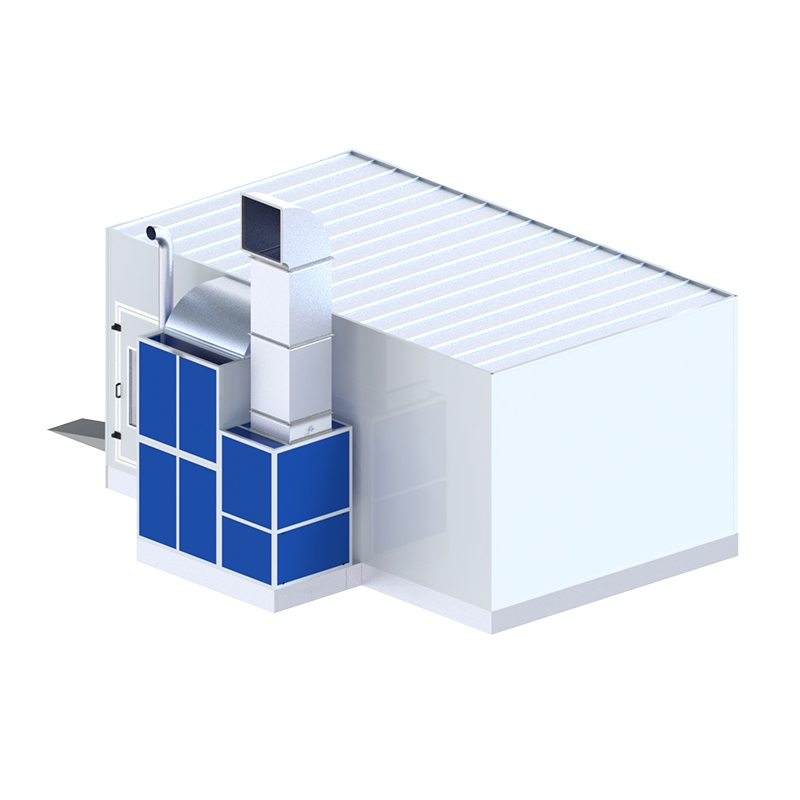

Economy Spray Booth

Project\Model

Economy model BZB-004E

Economy model BZB-005E

Economy model BZB-006E

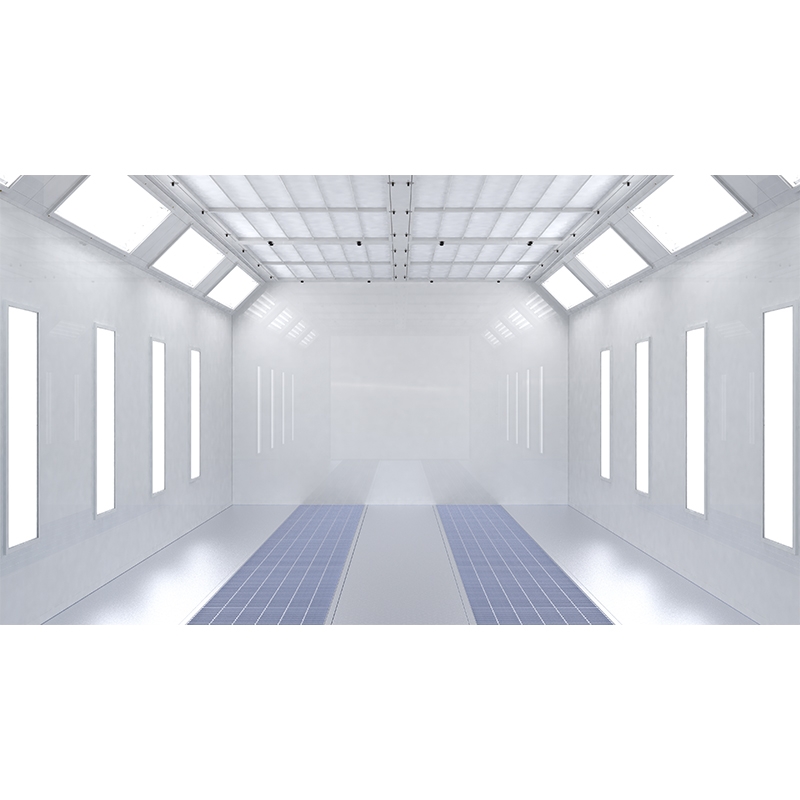

Inner dimension

6900 × 4000 × 2650 (L × W × H)

Wall panel

50mm thick EPS,δ=0.426mm Color steel plate, Sandwich Style,width: 1150mm;

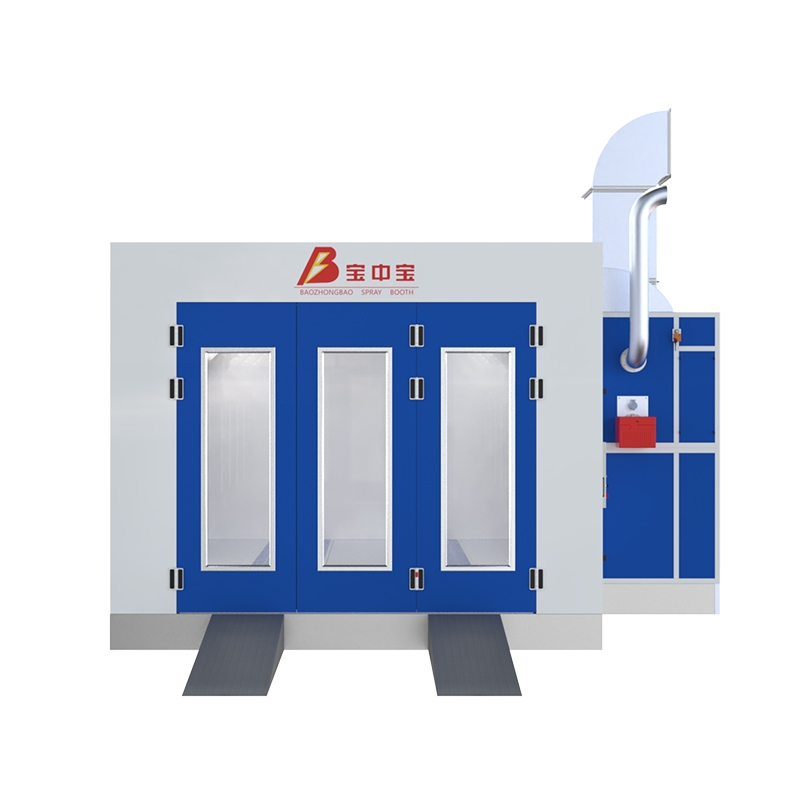

Main door

Opening size: 3000 × 2600mm (W × H ) ,3 door leaves with Glass Window, Manual folding sheet metal door without edges ,EPS filling;

Personal door

Aluminum alloy frame structure, with glass window and pressure lock ,Enter size: 800 × 2000mm (W × H)

Basement

Height:300mm.Supporting parts are made of bent galvanized steel plates; 2 rows of grilles and 3 rows of pattern plates., The grilles are made of 30×4 flat iron, load capacity 600-650kgs/wheel;With 2 piece 900mm wide ramps;

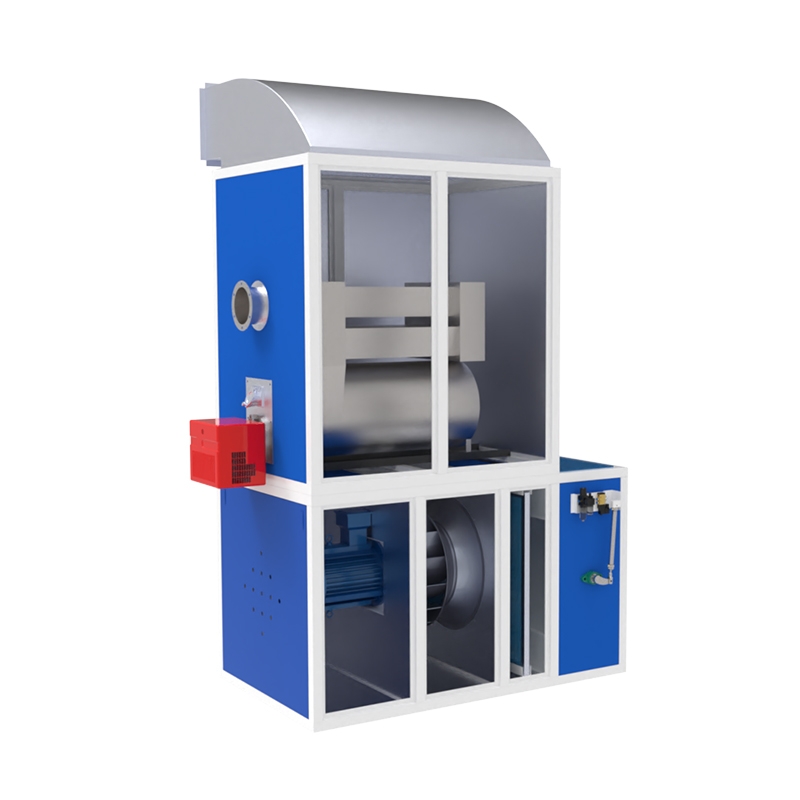

Air cabinet frame

The frame is made of profiled steel material, galvanized steel sheet metal bending mask, filled with rock wool insulation, and powder coated on the surface.

Intake fan

YDW series rotor centrifugal fan Fan model: YDW-4.5AL1, air volume: 12500m³/h, power: 4KW; Quantity: 2 units, total capacity: 25000m³/h,

Direct-drive turbine Fan model: BZB -710, air volume: 25000m³/h, motor power: 7.5KW; quantity: 1 unit, Total capacity : 25000m³/h,

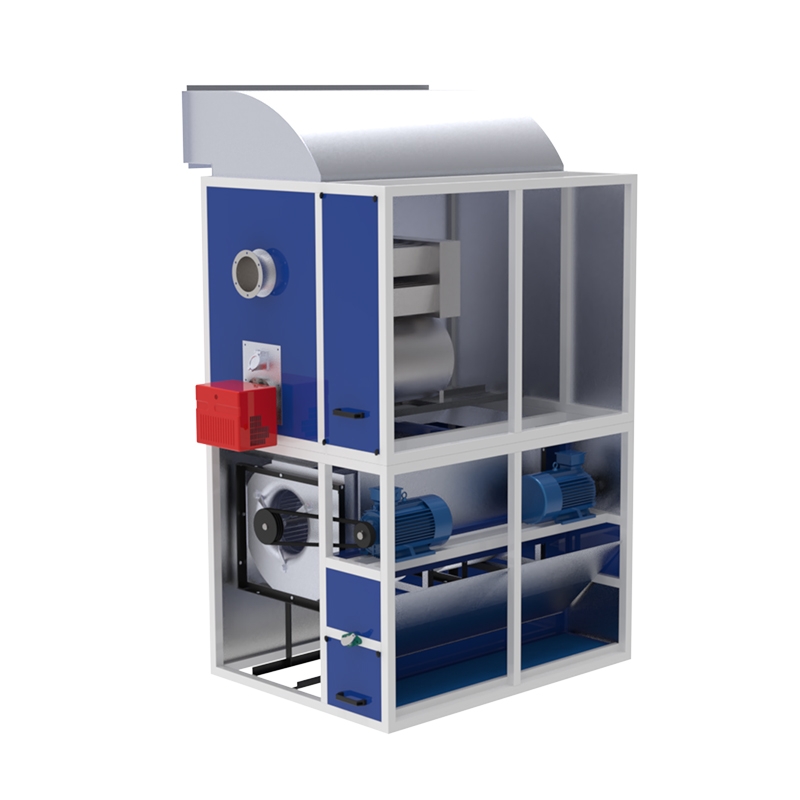

Belt-driven double-inlet centrifugal fan, model: 400, air volume: 12500m³/h, power: 4KW; quantity: 2 units, Total capacity : 25000m³/h,

Exhaust system

Optional

Lighting system

8 groups × 4 pcs = 32 pcs × 18 W, LED lamp; Illumination ≥800LUX

Filter System

Primary filter：G3 level primary filter；Top filter: F5 filter cotton 560G; Floor filter: Glass fiber filter cotton; Exhuast filter: Optional

Heating system

Diesel burner + heat exchanger, made of stainless steel (SUS304); G20 model of Italy Riello diesel burner,burner calorific value: 180,000 Kcal/h;

Air circulation damper

Electric damper

Penumatic damper

Electric damper

Electronic control system

Knob control, main components are Schneider brand; Motor direct start.

Painting, heated air painting, baking, lighting, emergency stop switch, fault alarm, accumulated time, paint baking delayed stop protection, motor overload and over-current protection, fan and heating system interlock, etc.

No-load wind speed

≥0.25m/s

Total power

9KW

8.5

9KW
