Spray Booth Equipment
Company Background and Large-Scale Coating Capabilities
Founded in 1999, Guangdong Jingzhongjing Industrial Coating Equipment Co., Ltd. has been deeply involved in the coating equipment industry for 27 years. Its main business covers three major areas: large-scale industrial coating production lines for cars, buses, and machinery. Its core business covers high-end coating equipment for automobiles, aerospace, and rail transportation. The company has rich experience and delivery capabilities in building spray booths and complete coating production lines for large vehicles such as buses and trucks.
The company has two major production bases in Guangzhou (30,000 square meters) and Yancheng, Jiangsu (120,000 square meters), with an annual production capacity of 6,000 units/sets. The new base located in the Guangqing Industrial Park has been fully put into operation, increasing the production capacity to 3 to 4 times that of the old plant, and the entire workshop has been upgraded with automation.
Jingzhongjing can customize the spray booth specifications according to the different vehicle models and sizes of buses and trucks, flexibly meeting the painting needs of various large vehicles

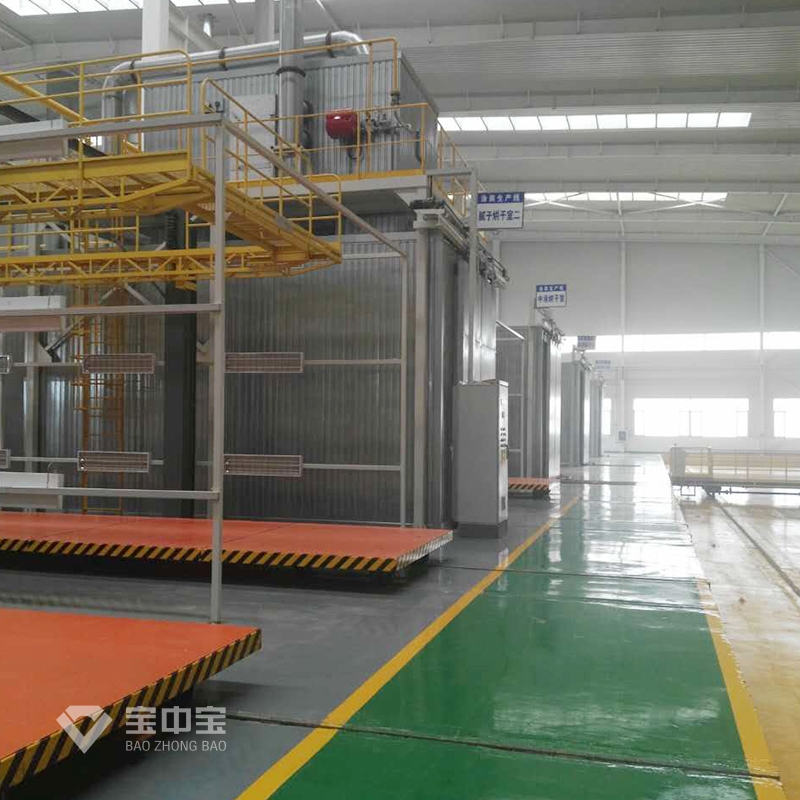

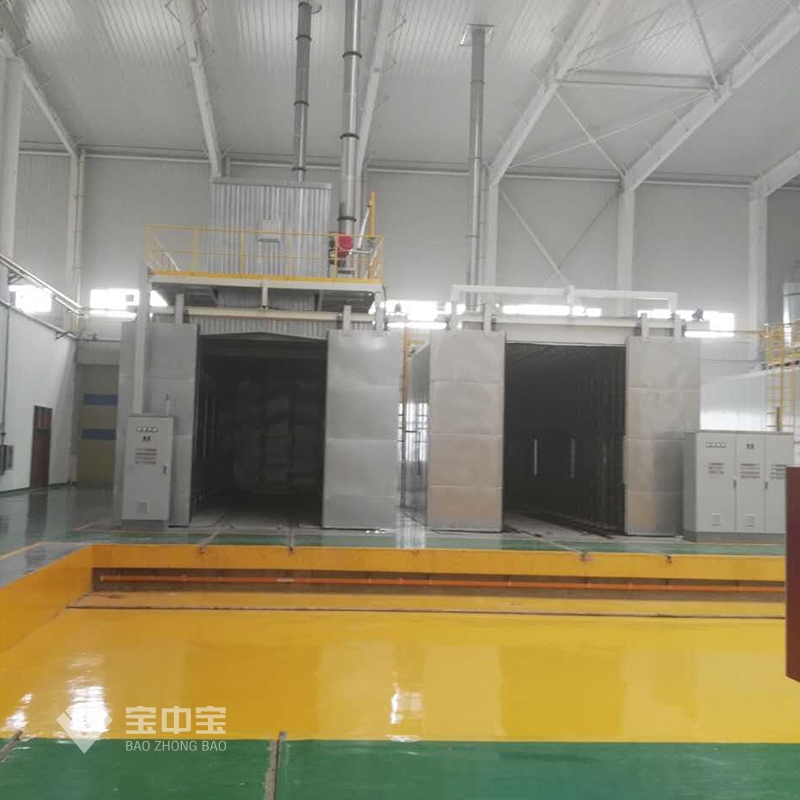

The Jingzhongjing bus paint booth is a comprehensive enhancement based on the standard BZB series:
Heavy-duty steel frame: Constructed from hot-dip galvanized steel sections, the structural strength is significantly improved, fully meeting the load-bearing requirements for large vehicles entering and exiting the area.
Insulated wall: 75mm thick EPS flame-retardant insulation board or rock wool fireproof board, double-sided 0.5mm thick color steel plate, one-time composite molding on the production line, firmly sealed, heat-insulating and flame-retardant.
Gate System: Utilizing either a three-panel folding sheet metal gate or an electric roller shutter, the gate opening is heightened and widened to facilitate smooth passage for large vehicles; the electric roller shutter features an aluminum alloy sandwich profile filled with PU insulation material, providing excellent thermal insulation and sealing performance.
Platform reinforcement: The platform is constructed with a fully galvanized steel plate assembly structure and a steel frame, topped with a fully galvanized load-bearing grating. Its load-bearing capacity meets the stringent requirements for fully loaded buses to enter and exit.
Uphill ramp: Widened anti-slip patterned plate with a gentler slope design to ensure safe entry for large vehicles.
Pressure lock: The door is equipped with a pressure lock that automatically releases pressure when the indoor pressure reaches 120Pa, ensuring safe use.
Buses have large painting areas and generate a lot of paint mist, so Jingzhongjing has equipped them with a ventilation system that far exceeds that of standard paint booths.
The supply and exhaust ducts adopt an independent dual-path design and are equipped with an automatic damper system to precisely switch between spray painting and baking modes.
Both the air inlet and outlet are equipped with manually adjustable dampers, allowing for precise adjustment of airflow.
Optional variable frequency speed control function allows for flexible adjustment of air volume according to different vehicle models, achieving energy saving and noise reduction.
Large buses, with their large size and spacious interiors, place higher demands on their heating systems.
Heating methods: plate heating, radiant heating, or fuel/gas burner heating
Heat exchanger: Employs a high-efficiency stainless steel heat exchanger with a larger heat exchange area and higher thermal efficiency.
Heating rate: 20℃→60℃, approximately 15~25 minutes (depending on the volume of the space).
Maximum operating temperature: 80℃
Temperature uniformity: within ±2℃, ensuring uniform curing of large areas of paint surface.
The use of hot air recirculation mode effectively improves thermal efficiency and reduces energy consumption.
Configuration
Bus and truck paint spraying booth
illustrate

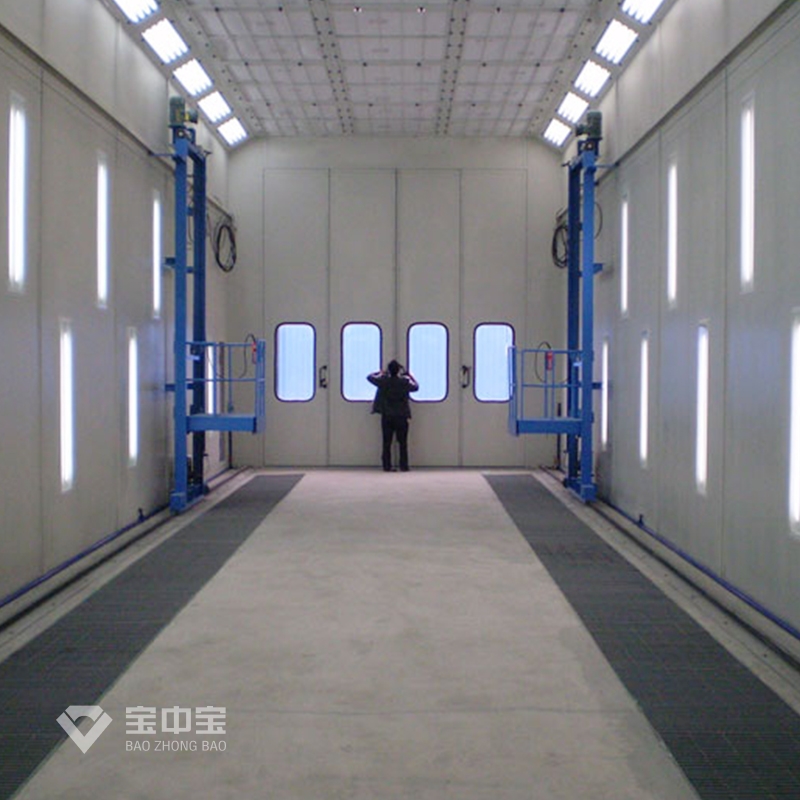

Dome light
60-80 18W Philips fluorescent tubes
Multiple rows evenly arranged, covering a large area
Waist lights/side lights
16-24 Philips 18W fluorescent tubes
0.5m from the bottom to eliminate shadows on the lower half of the vehicle body.
Illuminance
≥1000Lux
Ensure no blind spots in large-area spraying operations
Lightbox
With a gentle breeze nozzle
To prevent dust accumulation at the bottom of the lightbox and avoid airflow dead zones.
All lamps are Philips lamps with electronic ballasts, and they can still work normally at voltages as low as 180V.
Explosion-proof LED tubes are optional, fully meeting explosion-proof safety requirements.
Three-stage air intake filtration: Pre-filter G4 + Medium-efficiency filter F5 + Sub-high-efficiency filter F8 (imported from the Netherlands, CC-600G filter cotton), filtration efficiency **>98%**
Exhaust paint mist filtration: Fiberglass filter felt or M-type activated carbon, efficiently capturing paint mist particles.
VOCs Waste Gas Treatment System (Jingzhongjing Environmental Protection Equipment's Core Advantages):
Activated carbon adsorption + catalytic combustion (CO)
Zeolite molecular sieve rotor + RTO regenerative oxidation
Multiple treatment methods including UV photo-oxidation and low-temperature plasma.
Non-methane total hydrocarbon emission concentrations have remained stable and met national and local environmental protection standards.
Security system
Configuration instructions
Explosion-proof rating
All electrical equipment meets explosion-proof standards and is equipped with explosion-proof LED lighting.
Combustible gas monitoring
Real-time monitoring of VOCs concentration; automatic interlock alarm when exceeding the standard.
Overload protection
Both the fan and heating system are equipped with overload protection devices.
Emergency Stop
Multiple emergency stop buttons are deployed for rapid emergency response.
Fire prevention
Optional automatic fire alarm and extinguishing system
Pressure relief
The 120Pa pressure lock automatically releases pressure to prevent overpressure risks.
Fully automatic PLC control, using components from internationally renowned brands such as Siemens.
Real-time monitoring and automatic adjustment of temperature, humidity, wind speed, air volume, and pressure.
One-button switching between spray painting and baking modes, with automatic damper linkage control.
Supports scheduled start/stop, fault alarm, and historical data recording.
Optional remote monitoring function enables real-time control of equipment operating status.
Jingzhongjing can flexibly configure the following auxiliary equipment for the paint spraying booths of large buses:
Configuration
Use
3D worktable (top-rail movable type)
To facilitate workers' access to the roof and high parts of the vehicle body
Infrared heating lamp
Assisted local baking improves drying efficiency
Water-based paint compatibility system
Adjustable nozzles on both sides of the top, suitable for water-based paint spraying.
Mobile track frame
Convenient for spraying small parts
Tracheal box (including pressure gauge and regulating valve)
Centralized gas supply interface, easy to use
Enclosed tool cabinet
Paint and tools are stored neatly and in an orderly manner.
The core advantages of Guangdong Jingzhongjing Bus and Truck Spray Painting Booth can be summarized as: nearly 30 years of coating experience + non-standard customization capabilities + industrial-grade quality assurance + full-chain environmental protection support.
Features
illustrate
High degree of customization
Custom-made to fit the actual dimensions of buses and trucks, with lengths exceeding 16 meters.
High structural strength
Heavy-duty steel frame with reinforced platform to meet the load-bearing requirements of large vehicles.
High air volume/heating power
Air supply and exhaust volume of 40,000~100,000 m³/h, with significantly improved heating power.
Quality guaranteed
Components from international brands such as Siemens and Philips, with ISO9001 and CE dual certifications.
Environmental compliance
Self-produced VOCs waste gas treatment equipment (CO/RTO/zeolite rotor), one-stop solution.
Rich industry experience
Our products cover large-scale coating fields such as buses, construction machinery, and aerospace.
Well-established after-sales network
Headquarters customer service center + provincial capital offices + overseas agents, 24/7 service.
We have representatives in over 100 countries around the world, They provide dedicated after-sales support to ensure complete customer satisfaction and long-term operational confidence.
