South Africa Project

The client requires:

● 2 units of spray paint & baking booths (size: 15,000 × 5,500 × 5,500 mm)

● 2 units of sanding booths (size: 15,000 × 5,000 × 5,500 mm)

● 2 units of sanding booths (size: 15 × 10 × 5 m)

Brake fluid vacuum filler, coolant vacuum filler, refrigerant vacuum filler, wheel alignment machine, brake tester, axle scale, fully automatic headlamp tester, and stationary sealant application platform.

1. Customized one-on-one service – we provide the optimal solution based on the client’s supplied data and site conditions.

2. Compliance with product quality and process requirements – rational layout to facilitate production, material flow, and maintenance.

1. Spray & bake booths are integrated paint-drying units, with electrically operated sectional overhead doors for easy workpiece access

2. Dry-filtration system uses a 3-stage process:

Stage 1: labyrinth cardboard filter

Stage 2: fiberglass wool

Stage 3: activated carbon filter

Features: high dust-holding capacity, low resistance, strong flame retardancy, long service life, and washable for repeated use – economical and practical.

3. Sanding booths are equipped with electrically operated high-speed roller doors for convenient workpiece entry.

Suitable for paint spraying and baking of various buses and trucks.

We provide sitespecific design solutions, 24hour online support, and costeffective proposals.

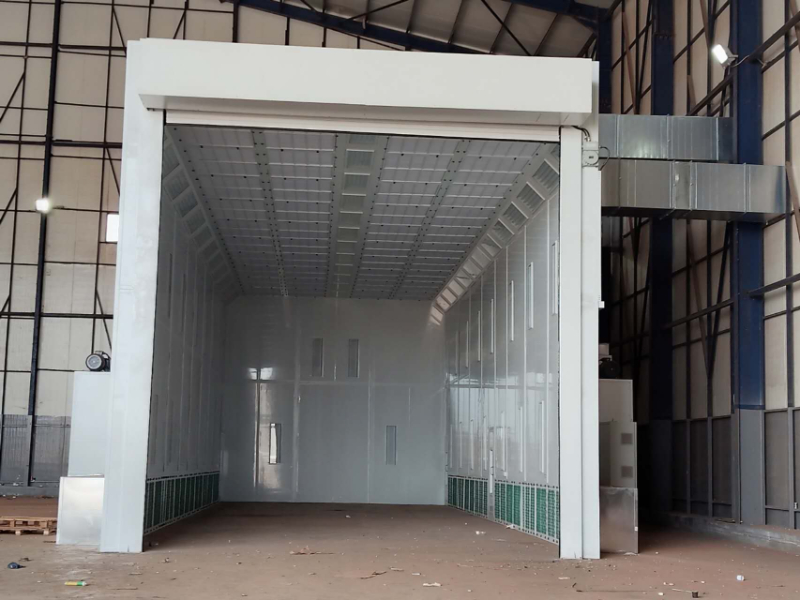

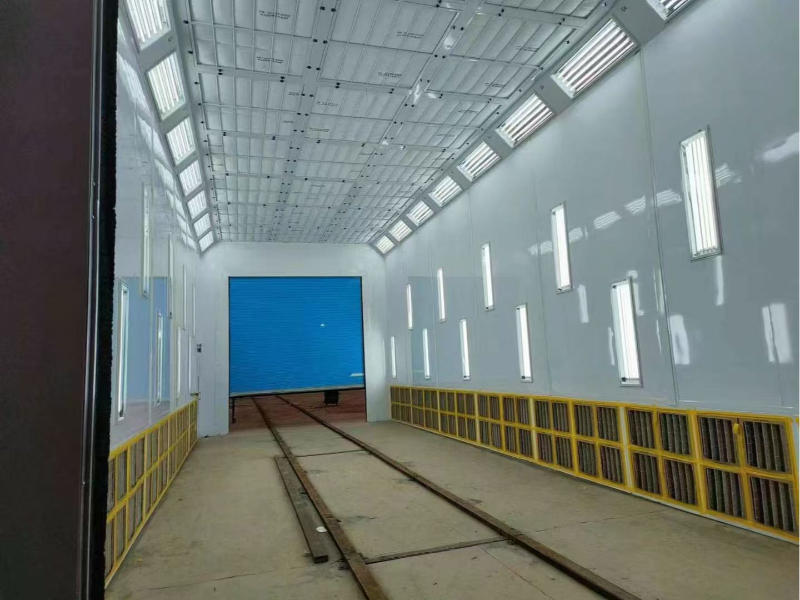

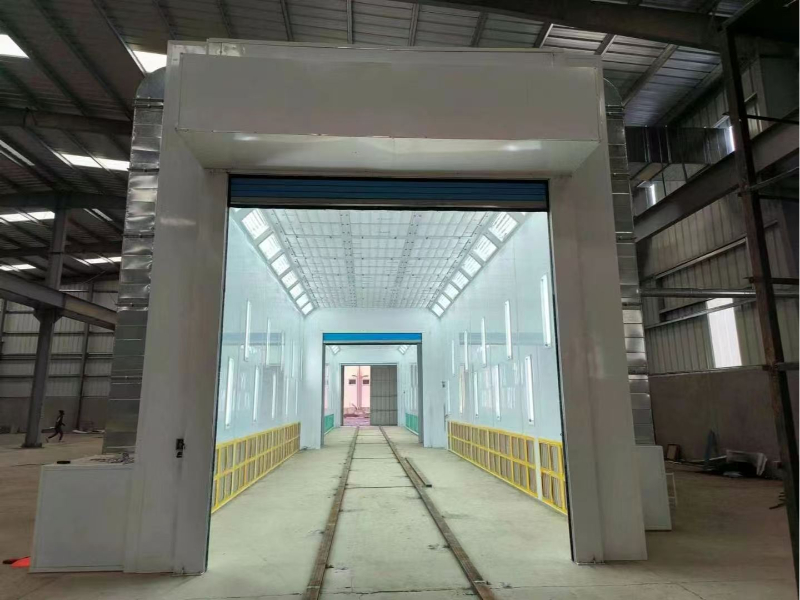

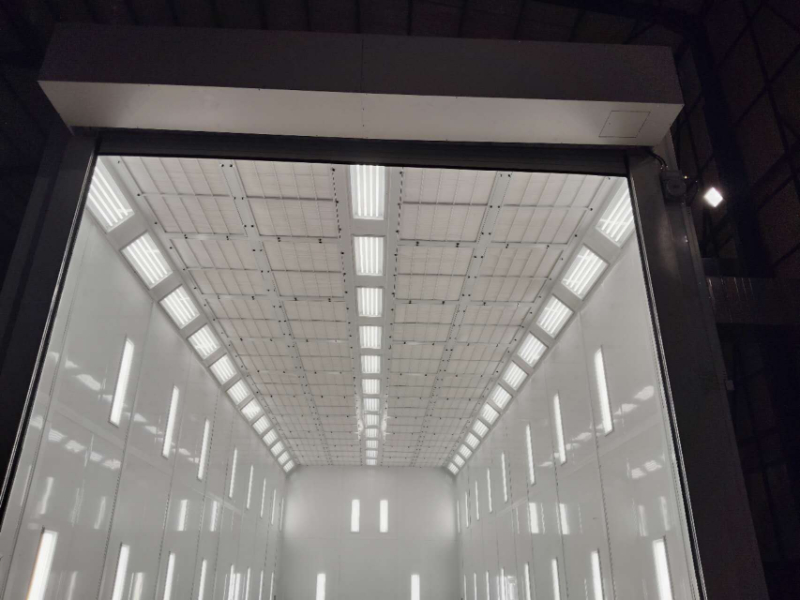

Attached: finished product images from the client.
