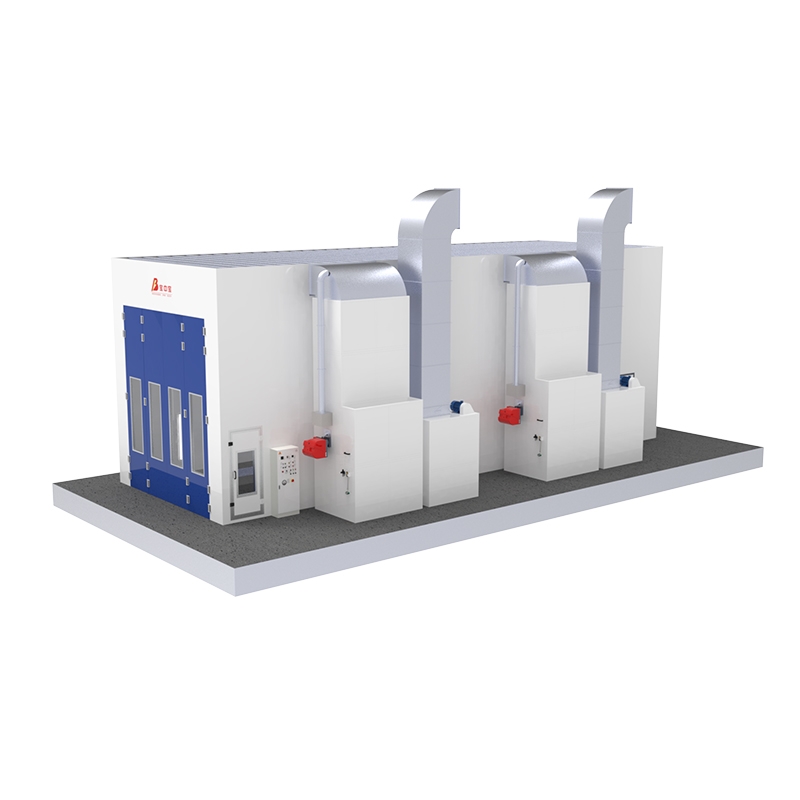

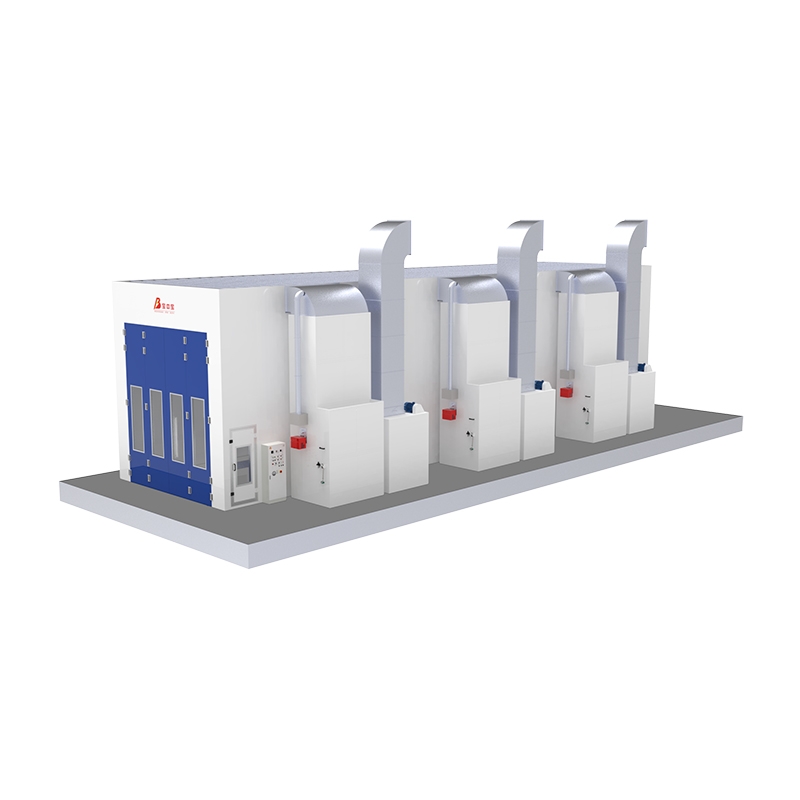

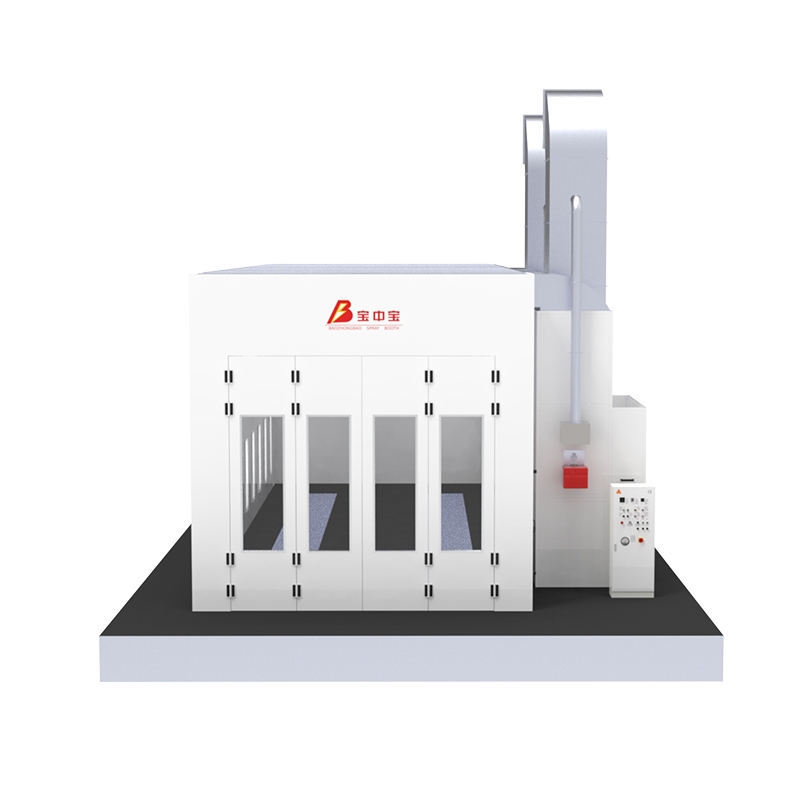

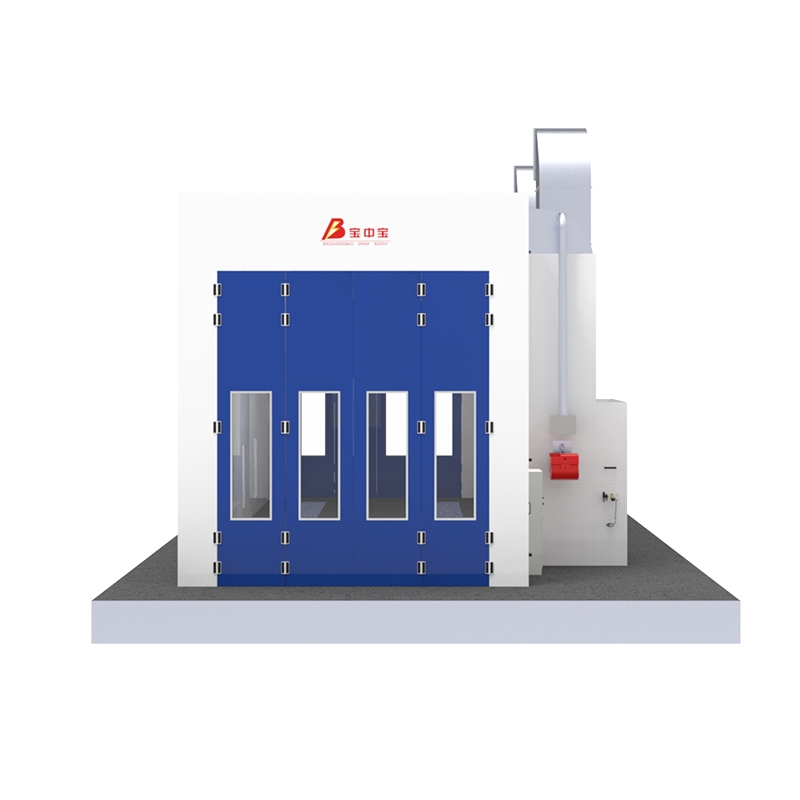

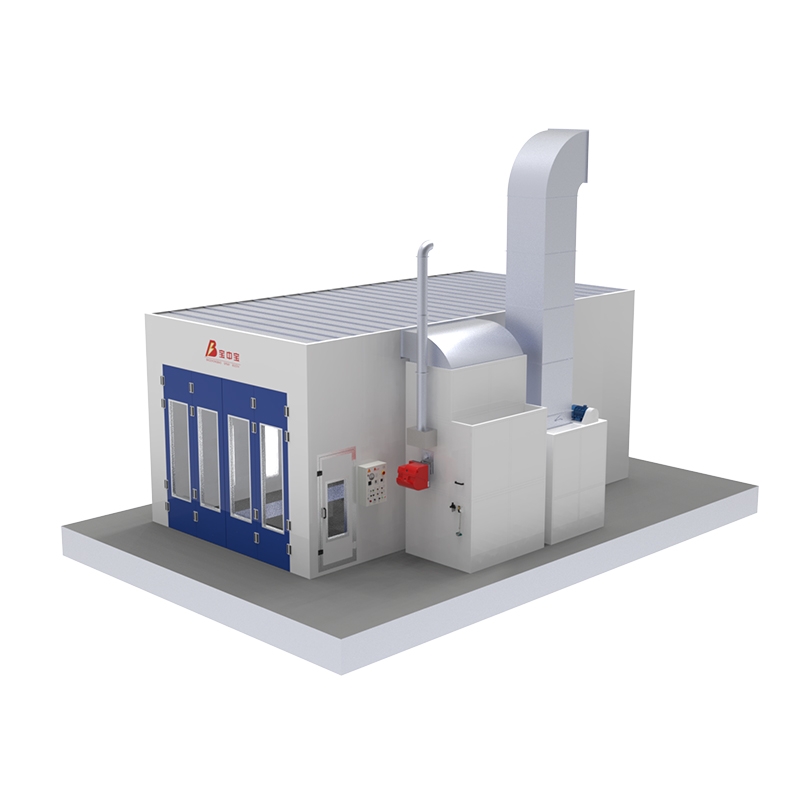

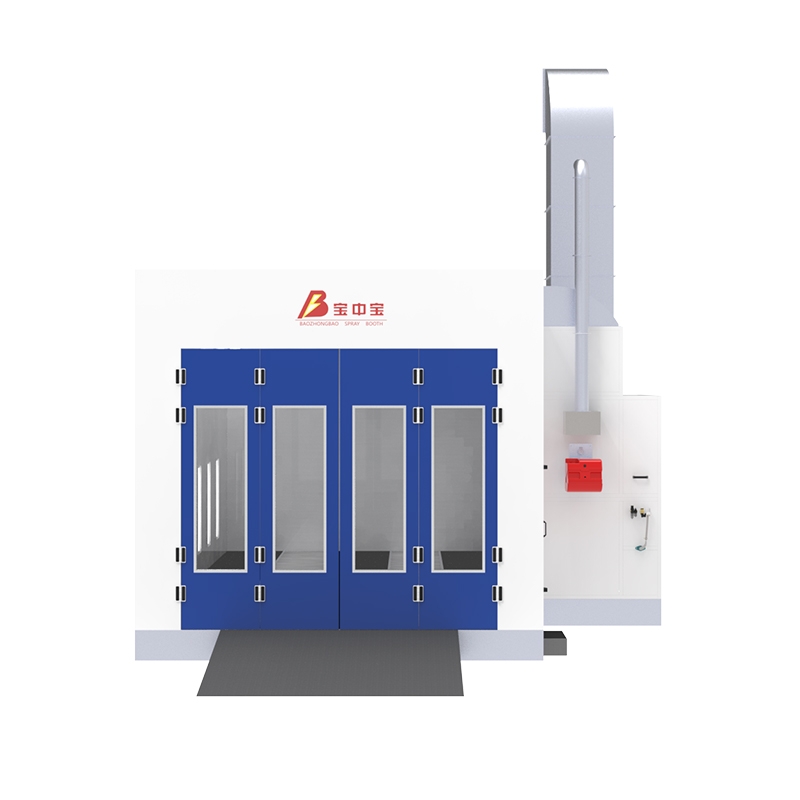

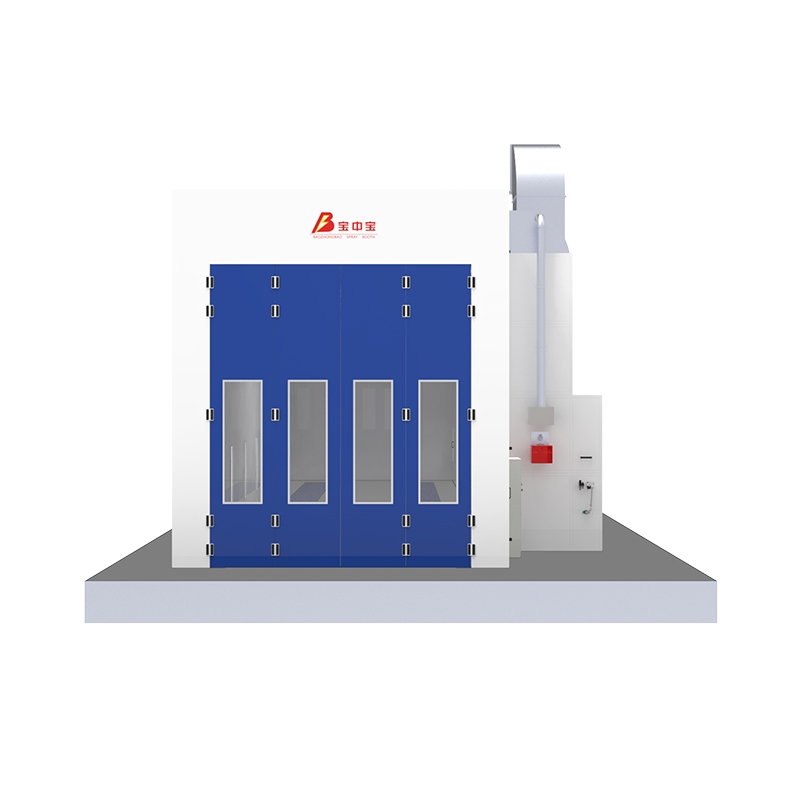

Large Spray Painting Booth Series
|
Project\Model |
BZB -900 |
BZB -1200 |
BZB -1500 |
BZB -2000 |
|
Inner dimensions |
9000 × 4500 × 3500 (L × W × H) |
12000 × 4500 × 4000 (L × W × H) |
15000 × 5000 × 5000 (L × W × H) |
20000 × 5000 × 5000 (L × W × H) |
|
Spray booth |
The steel composite beams are reinforced with steel profiles; the wall panels are vertically embedded; the static pressure chamber is located on top of the operating room; between the static pressure chamber and the operating room, there is a top mesh, a baffle plate, and high-quality filter cotton; the height of the static pressure chamber is 600mm. Wall panels: made of 75mm thick double-sided δ=0.5mm color steel plates; internal filling material: EPS ; Top plate: Made of single-layer δ-0.8mm high-quality galvanized steel sheet by bending. |
|||
|
Gate structure |
Manually folding galvanized sheet bending and powder-coated edged gate, with 4 door panels and a standard tempered glass observation window ; |
|||
|
Doorway dimensions |
3500×3200mm (W×H) |
3500×3800mm (W×H) |
4000×4500mm (W×H) |
|
|
Service door |
It adopts an aluminum alloy frame structure, and is equipped with a tempered glass observation window and a pressure lock device to ensure pressure relief when the indoor positive pressure is too high. Door dimensions: 800 × 2000mm (W × H) |
|||
|
Ditch system |
Angle iron is pre-embedded around the trench, and floor cotton brackets , fiberglass cotton and floor grid are installed. The floor grid is made of 30×4 flat iron and the surface is sprayed with oil. |
|||
|
Rack frame |
The frame is welded using 50 forming material, with inner and outer 0.8 mm galvanized steel sheet panels, rock wool insulation material filling the middle, and the surface is sprayed. |
|||
|
Intake system |
YDW series dual- inlet external rotor centrifugal fan, model: YDW-5.6 M , air volume: 20000m³/h, total pressure: 800Pa, power: 7.5KW; Quantity: 2 units, Total air supply volume: 40000 m³/h |
YDW series dual- inlet external rotor centrifugal fan, model: YDW-4.5 L , air volume: 12500m³/h, total pressure: 800Pa, power: 4KW; Quantity: 4 units, Total air supply volume: 50,000 m³/h |
YDW series dual- inlet external rotor centrifugal fan, model: YDW-5.6 S , air volume: 15500m³/h, total pressure: 800Pa, power: 5.5KW; Quantity: 4 units, Total air supply volume: 62000 m³/h |
YDW series dual- inlet external rotor centrifugal fan, model: YDW-5.6 M , air volume: 20000m³/h, total pressure: 800Pa, power: 7.5KW; Quantity: 6 units, Total air supply volume: 120,000 m³/h |
|
Exhaust system |
Belt-driven dual-inlet centrifugal fan, model: 630, air volume: 32000 m³/h, total pressure: 600 Pa, motor power: 11 KW; quantity: 1 unit. Total air supply volume: 32000 m³/h, equipped with manual damper |
Belt-driven dual-inlet centrifugal fan, model: 560, air volume: 25000 m³/h, total pressure: 600 Pa, motor power: 7.5 KW; quantity: 1 unit. Total air supply volume: 50,000 m³/h, equipped with manual dampers |
Belt-driven dual-inlet centrifugal fan, model: 630, air volume: 30000 m³/h, total pressure: 600 Pa, motor power: 11 KW; quantity: 2 units. Total air supply volume: 62000 m³/h, equipped with manual damper |
Belt-driven dual-inlet centrifugal fan, model: 630, air volume: 36000 m³/h, total pressure: 600 Pa, motor power: 11 KW; quantity: 3 units. Total air supply volume: 108,000 m³/h, equipped with manual dampers |
|
Lighting system |
Ceiling lights: 10 sets × 4 tubes = 40 tubes × 18 W, LED tubes; Waist lights: 12 sets × 2 units = 24 units × 18W, LED tubes; illuminance ≥ 800 LUX |
Ceiling lights: 14 sets × 4 tubes = 56 tubes × 18W, LED tubes; Waist lights: 16 sets × 2 units = 32 units × 18W, LED tubes; illuminance ≥ 800 LUX |
Ceiling lights: 18 sets × 4 tubes = 72 tubes × 18W , LED tubes; Waist lights: 20 sets × 2 units = 40 units × 18W, LED tubes; illuminance ≥ 800 LUX |
Ceiling lights: 24 sets × 4 tubes = 96 tubes × 18W , LED tubes; Waist lights: 28 sets × 2 units = 56 units × 18W, LED tubes; illuminance ≥ 800 LUX |
|
Filter system |
G3 grade pre-filter, filters out dust particles larger than 10μm. |
|
||
|
Top Filter |
F5 filter cotton B TO B-560G, filters out dust particles larger than 5μm. |
|||
|
Under-grid filter |
Fiberglass filter cotton (floor cotton) |
|||
|
Exhaust air filtration |
Glass fiber cotton + columnar activated carbon |
|||
|
Heating system |
The fuel burner and 232 KW heat exchanger are made of 1Gr18Ni9Ti stainless steel (SUS304). RG5S Italian Riello fuel oil burner for heating, with a calorific value of 260,000 kcal/h. Quantity: 1 set |
The fuel burner and 200 KW heat exchanger are made of 1Gr18Ni9Ti stainless steel (SUS304). G 20 Italian Riello fuel oil burner for heating, burner calorific value: 180,000 kcal/h; Quantity: 2 sets |
The fuel burner and 232 KW heat exchanger are made of 1Gr18Ni9Ti stainless steel (SUS304). RG5S Italian Riello fuel oil burner for heating, with a calorific value of 260,000 kcal/h. Quantity: 2 sets |
The fuel burner and 232 KW heat exchanger are made of 1Gr18Ni9Ti stainless steel (SUS304). RG5S Italian Riello fuel oil burner for heating, with a calorific value of 260,000 kcal/h. Quantity: 3 sets |
|
Circulating air damper |
Pneumatic damper performs internal and external circulation switching |
|||
|
Electrical control system |
Knob control; main components are from Schneider Electric. Spray painting, heated spray painting, baking paint, lighting, emergency stop switch, fault alarm, cumulative time, temperature limiter, baking paint delayed stop protection, motor overload and overcurrent protection, fan and heating system interlock , etc. |
|||
|
Unloaded wind speed |
≥0.25m/s |
|
||
|
Rated total power |
27.5KW |
34KW |
46KW |
95KW |
