KD Production Line

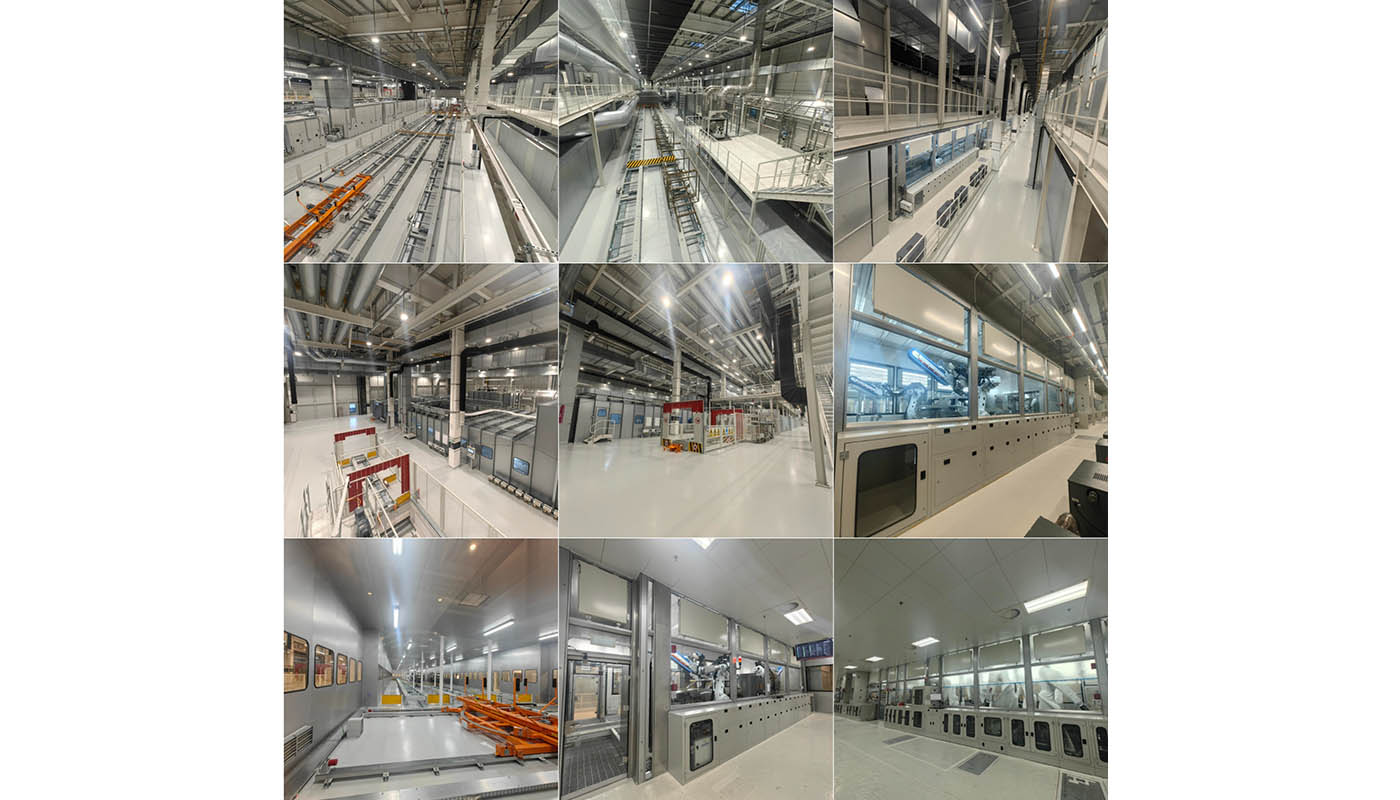

We provide comprehensive solutions for automotive painting production lines, ensuring the smooth planning and implementation of new equipment or the optimization and upgrading of existing factories.

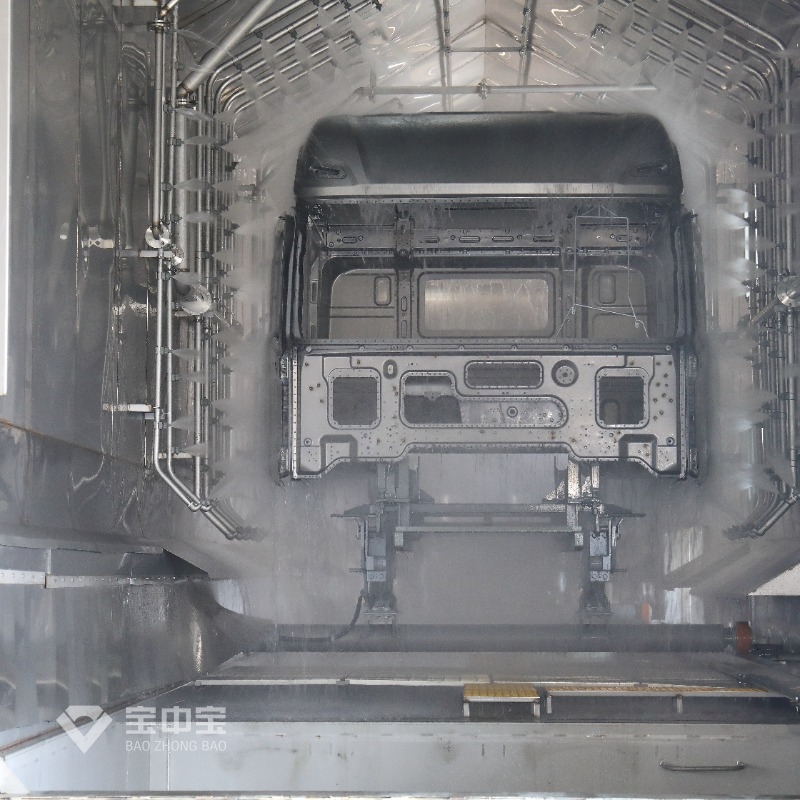

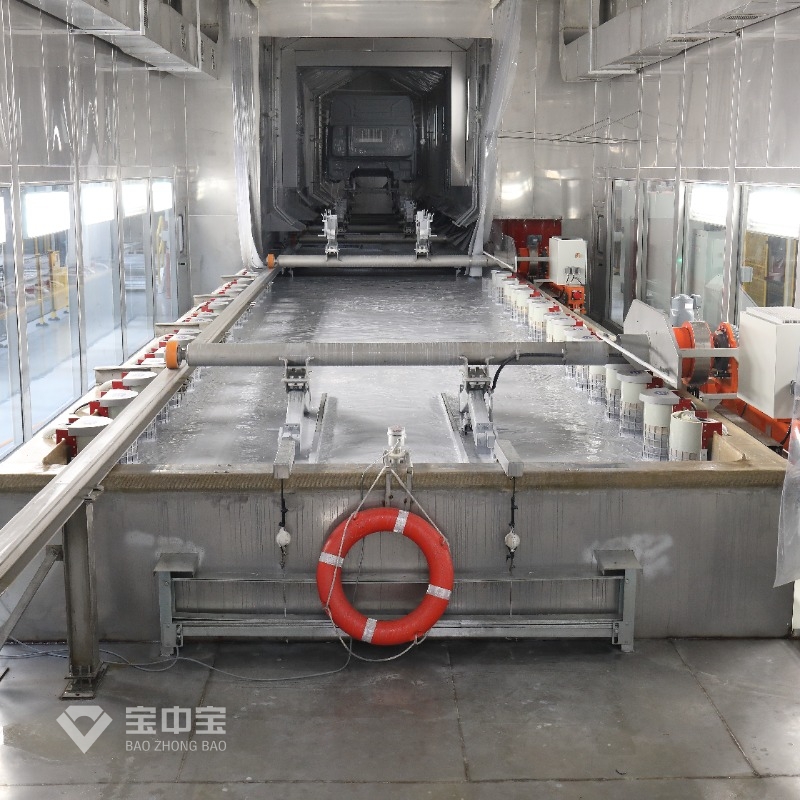

Complete set of equipment for pretreatment and electrophoresis

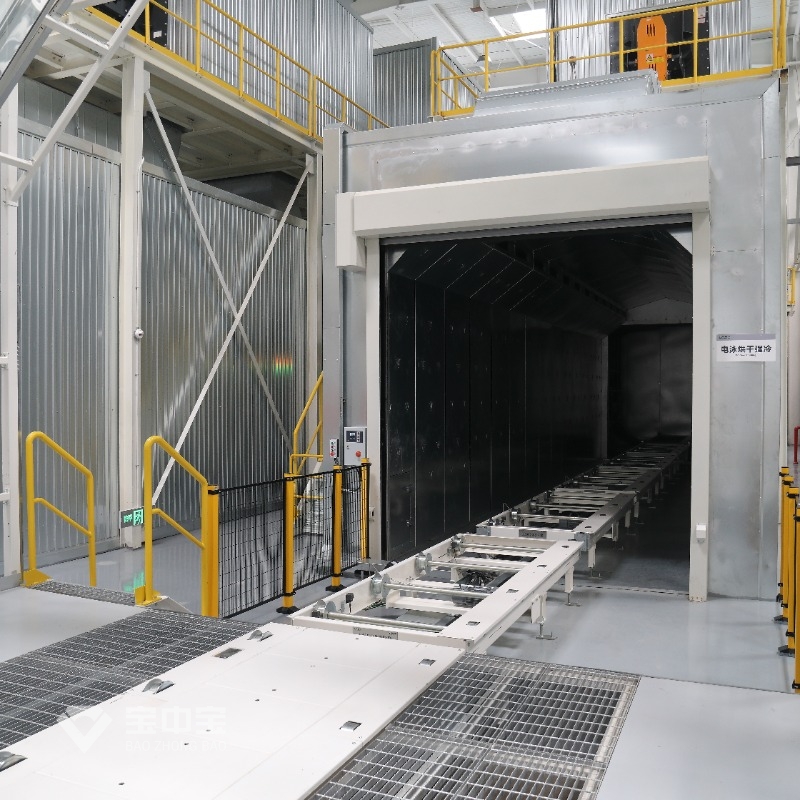

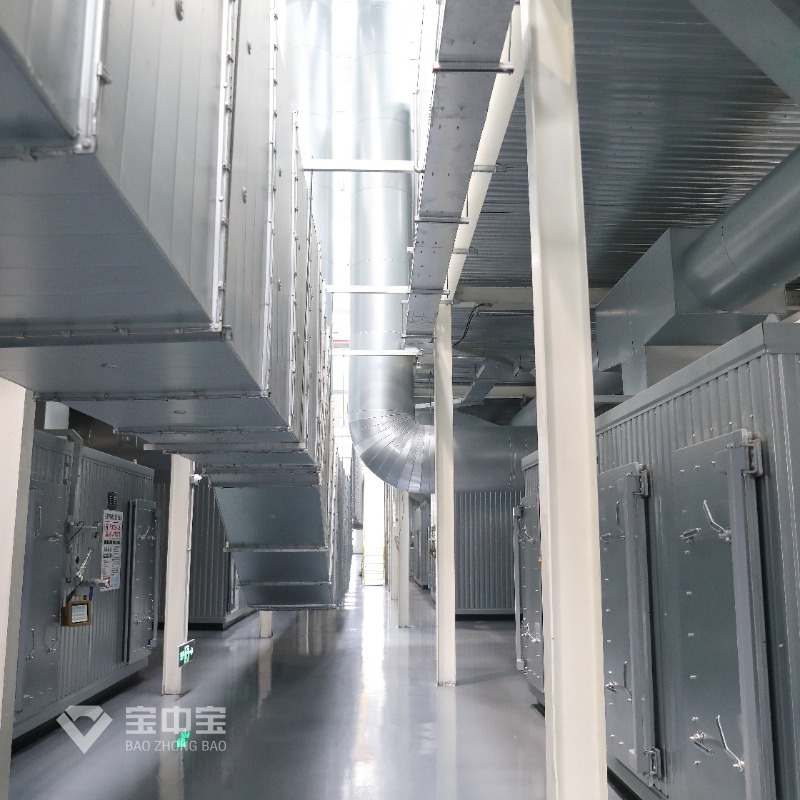

Bridge-type drying oven/direct-flow drying oven; hot air circulation system, burner (natural gas/ electric heating), automatic temperature control, exhaust gas treatment system, etc.
Complete set of equipment for sealant application station (PVC coating section, between welding and coating)
PVC coating system for the bottom of the robot body (chassis armor)

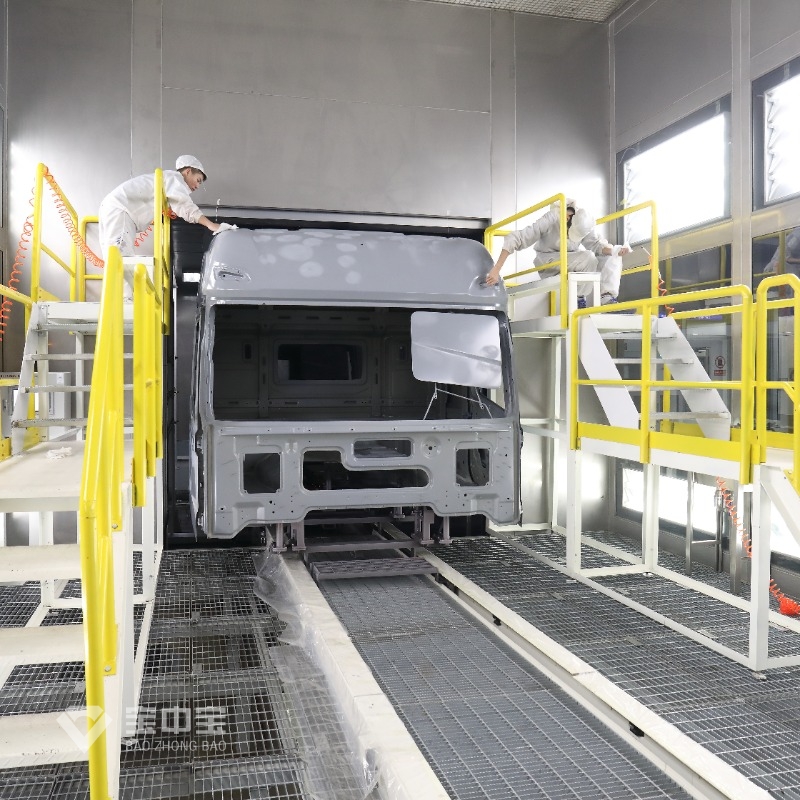

Robotic weld sealant application workstation
Manual glue application station, glue pump, pressure delivery system, glue gun, glue hose heating and insulation system
Skirt edge adhesive spraying equipment, sound insulation gasket pressing fixture
1. Water-swirling spray booth

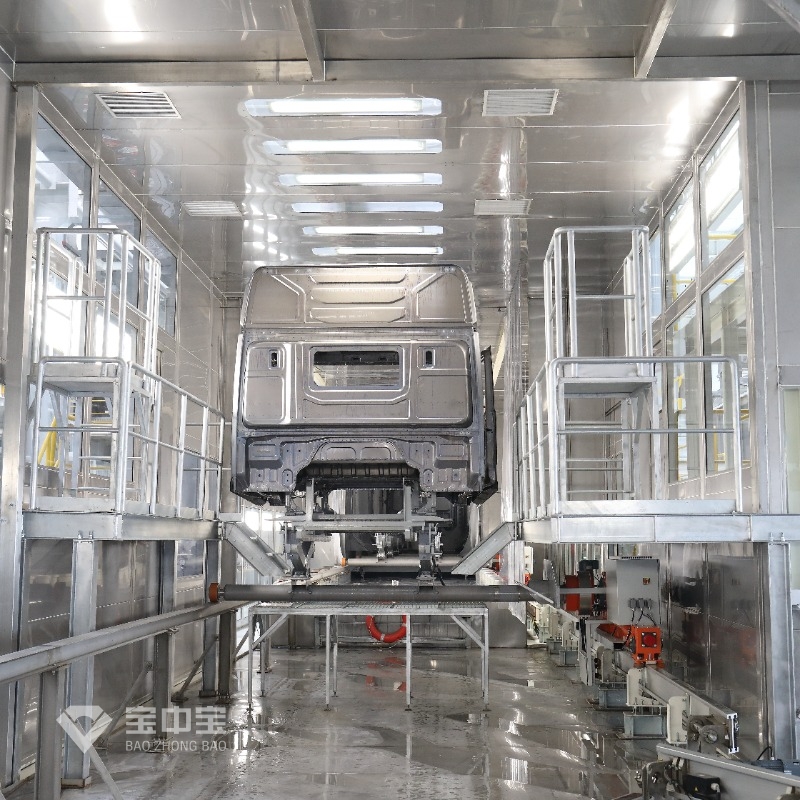

The spray booth consists of a spray booth body, a water vortex tower, a circulating water tank, a water circulation system, a paint sludge flocculation and dredging system, an air supply and air conditioning unit, a static pressure chamber, a laminar flow ceiling, an exhaust system, and exhaust ducts.
2. Venturi spray booth
3. Dry spray booth (water-saving, a new trend in environmental protection, no circulating water, uses filter paper boxes to capture paint mist)
4. Automated spraying robot system
Six- axis painting robot, door and lid opening robot (automatically opens four doors and two lids).
Electrostatic rotary cup spraying system (high voltage electrostatic generator, rotary cup, paint supply pipeline)
Flow metering system, quick color change system
5. Complete paint supply system
Centralized paint supply system (paint tanks, agitator, pressure stabilizer, circulation pipeline), solvent cleaning system, independent paint/varnish supply, and waste paint recycling.
6. Spray painting of air conditioning supply system
Constant temperature and humidity purification air conditioning unit
7. Complete Set of Waste Gas Treatment Equipment (Essential for Environmental Protection)
Regenerative Thermal Oxidizer (RTO) (for treating VOCs from paint spraying and drying waste gas; the industry mainstream)

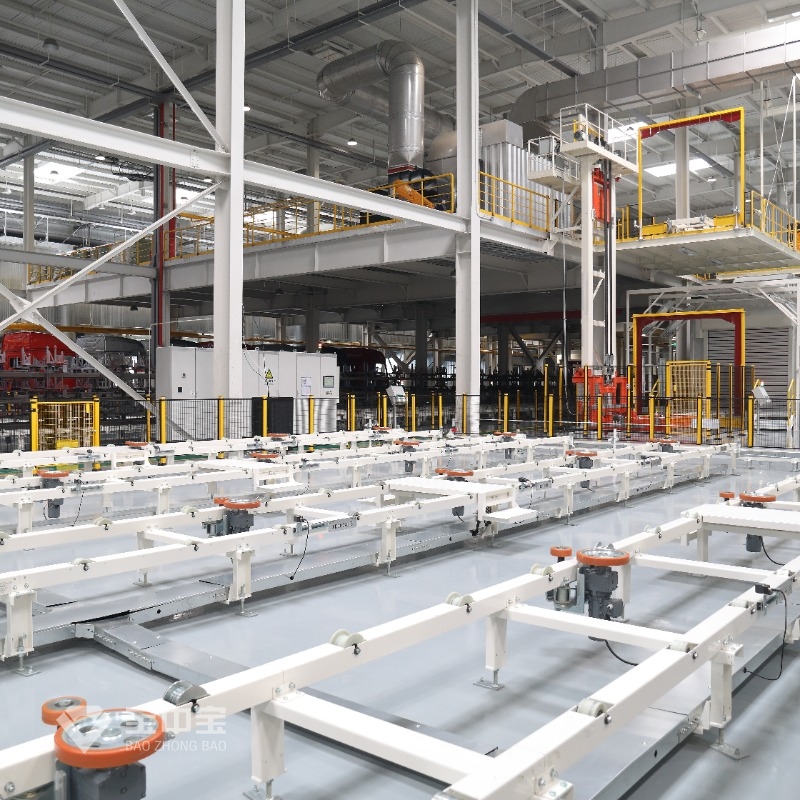

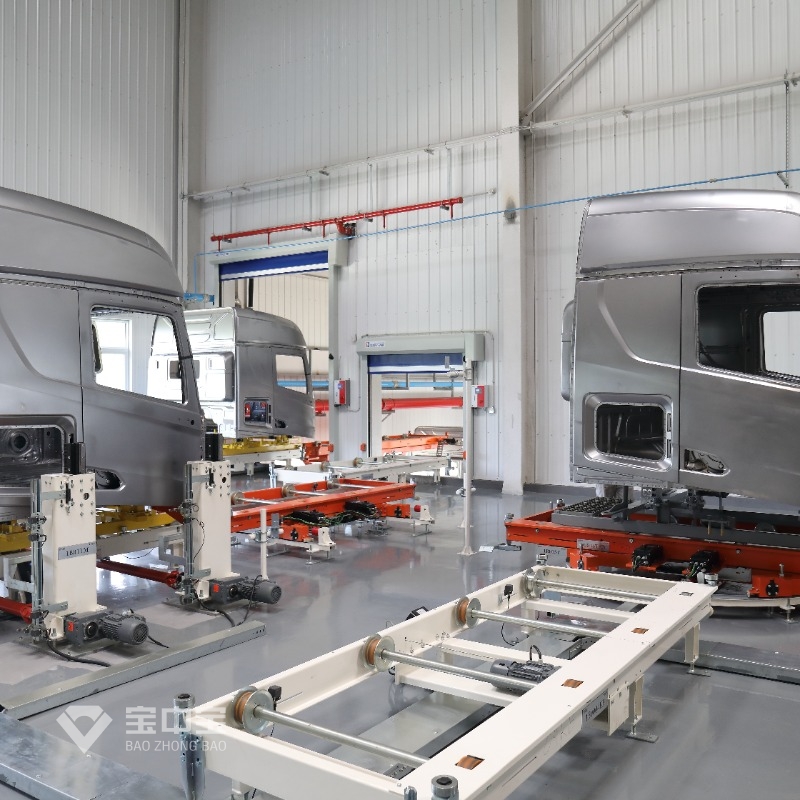

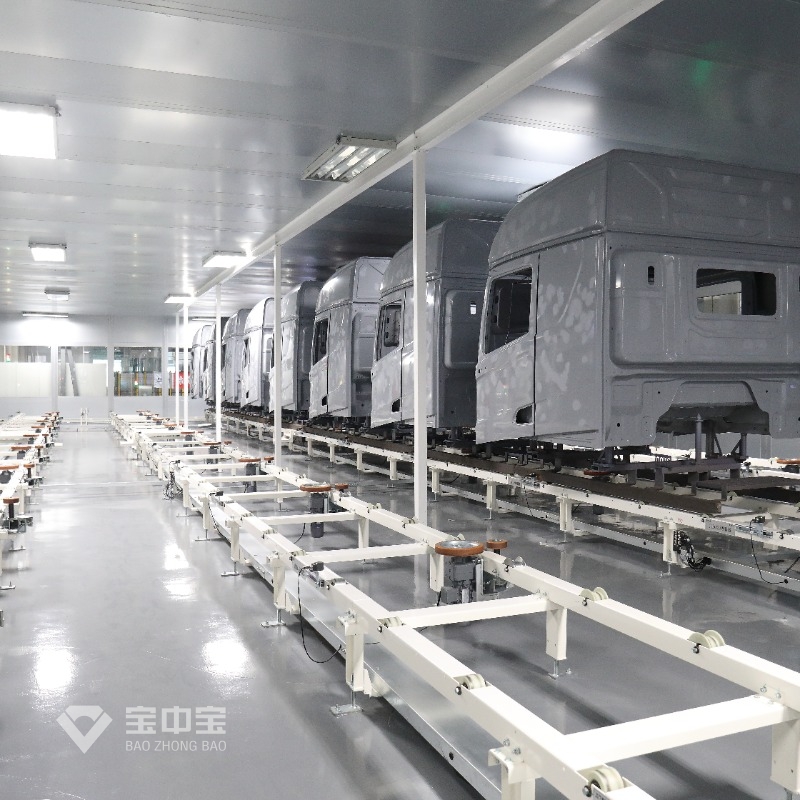

Skid conveyor systems: lifting roller beds, translation roller beds, rotary roller beds, transverse conveyors, stacker cranes , vehicle lifts , etc.
Filter
The entire line includes a PLC control system, HMI operator station, safety interlocks, and equipment bus; production line MES data acquisition, robot offline simulation, energy consumption monitoring system, and video security.
We have representatives in over 100 countries around the world, They provide dedicated after-sales support to ensure complete customer satisfaction and long-term operational confidence.
