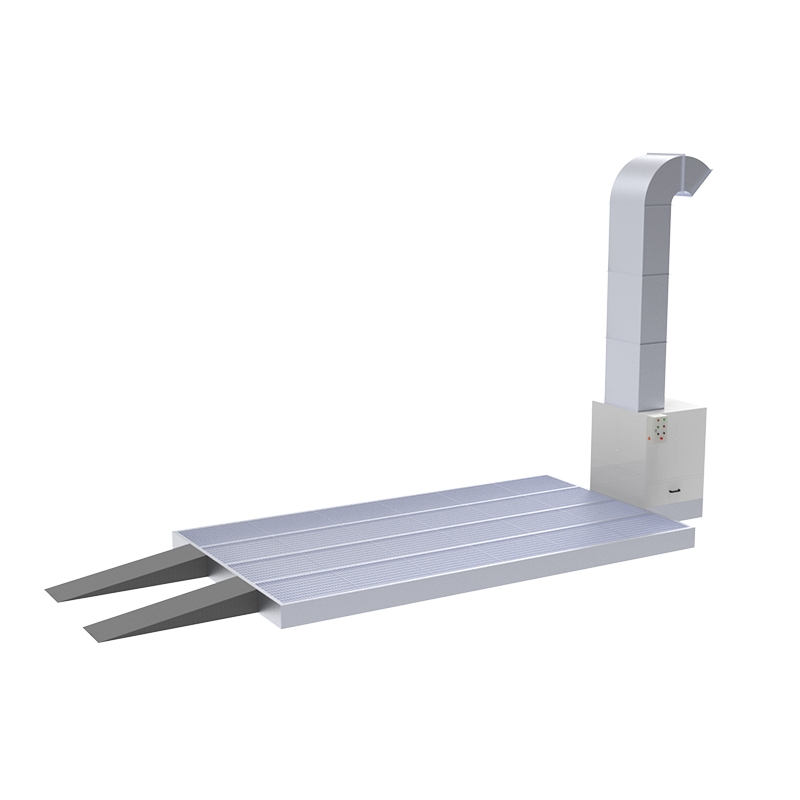

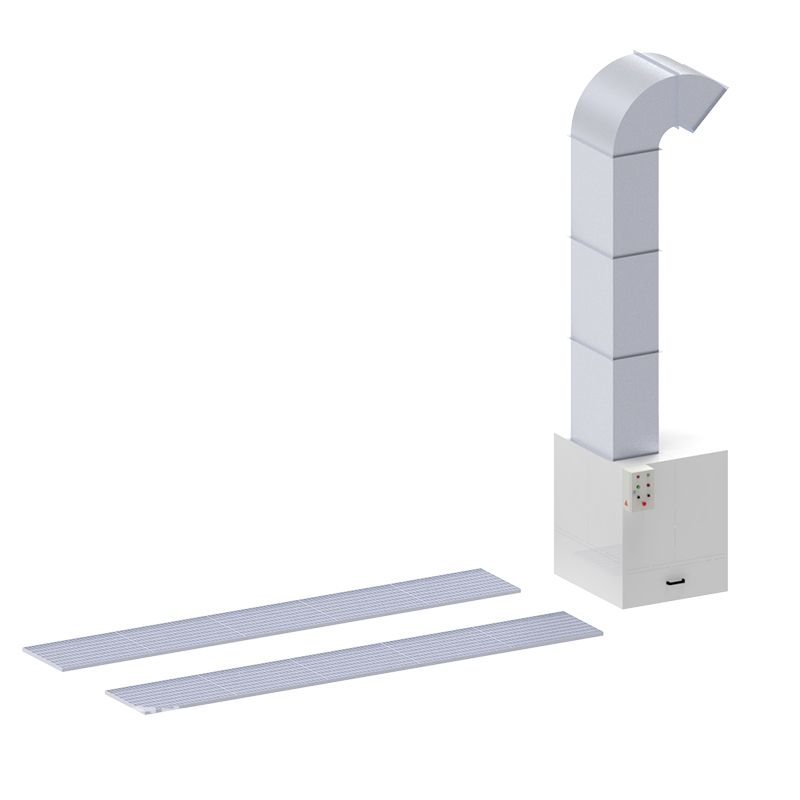

Single Air Inlet Series-prep Station

Project\Model

BZB-700A

BZB-800A

BZB-900A

Working area size

6300 × 3450 × 2650 (L × W × H)

Exhaust form

Rear wall exhaust, without static pressure room, without room body

Trench exhaust, without static pressure room, without room body

Floor exhaust, without static pressure room, without room body

Return air hood

Galvanized steel panel, filled with rock wool insulation, spray-painted on the surface, and fiberglass cotton on the windward side.

\

\

Trench system

\

The angle iron is pre-embedded around the pit, it is equipped with floor cotton brackets, fiberglass filter and floor grilles. Two rows of floor grilles are made of 30×4 flat iron and twisted steel, load-bearing: 600-650KGS/Wheel ;

\

Basement system

\

\

Basement made of galvanized steel plate bent, 300mm high, assembled with corrosion-resistant square steel frames, paved with 2 rows of grilles and 3 rows of pattern plates, grilles are made of 30×4 flat iron, load-bearing: 600-650KGS/Wheel; equipped with 2 piece 600mm wide ramps;

Cabinet frame

The frame is made of profiled material, galvanized steel sheet metal bending mask, filled with rock wool insulation material, and powder sprayed onto surface.

Exhaust fan

YDW series centrifugal fan, model: YDW-5.6 S, air volume: 15500m³/h, power: 5.5KW; Quantity: 1 unit, total exhaust volume: 15500m³/h,

Filtering system

Under grille/rear wall filtration: fiberglass filter cotton (floor cotton)

Exhaust air filtration: glass fiber filter cotton + dust filter

Exhaust duct

The air duct is made galvanized sheet, connected with mold flanges; straight pipe: 3 sections, 1 unit 90-degree elbow: 1 unit 45-degree elbow

Electronic control system

Knob switch control, the main components are of Schneider brand; motor direct start control system.

Grinding, emergency stop switch, fault alarm, cumulative time, motor overload and overcurrent protection, fan system interlock, etc.

Total power

5.5KW
