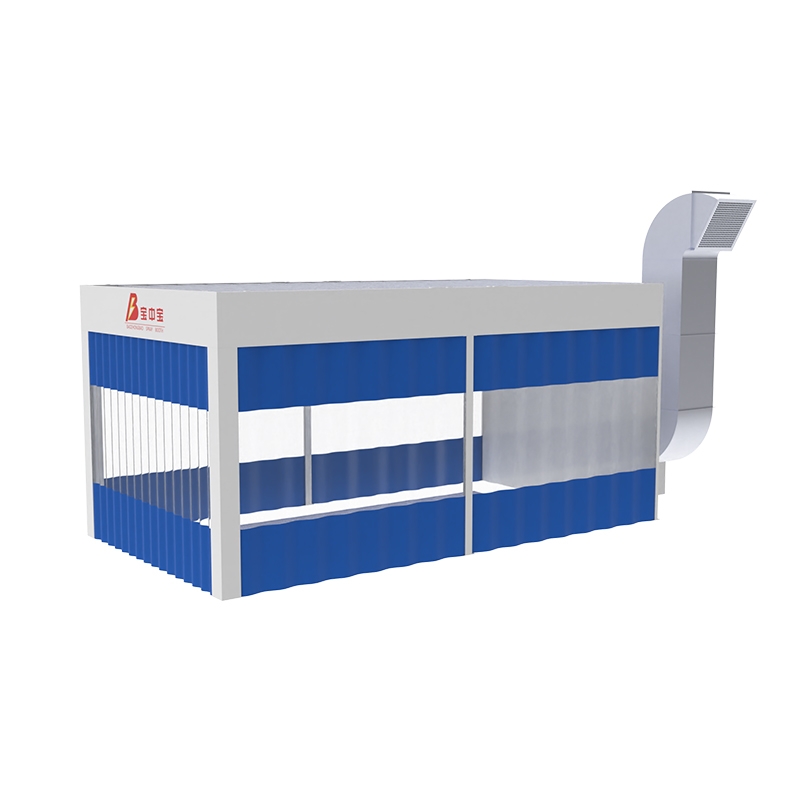

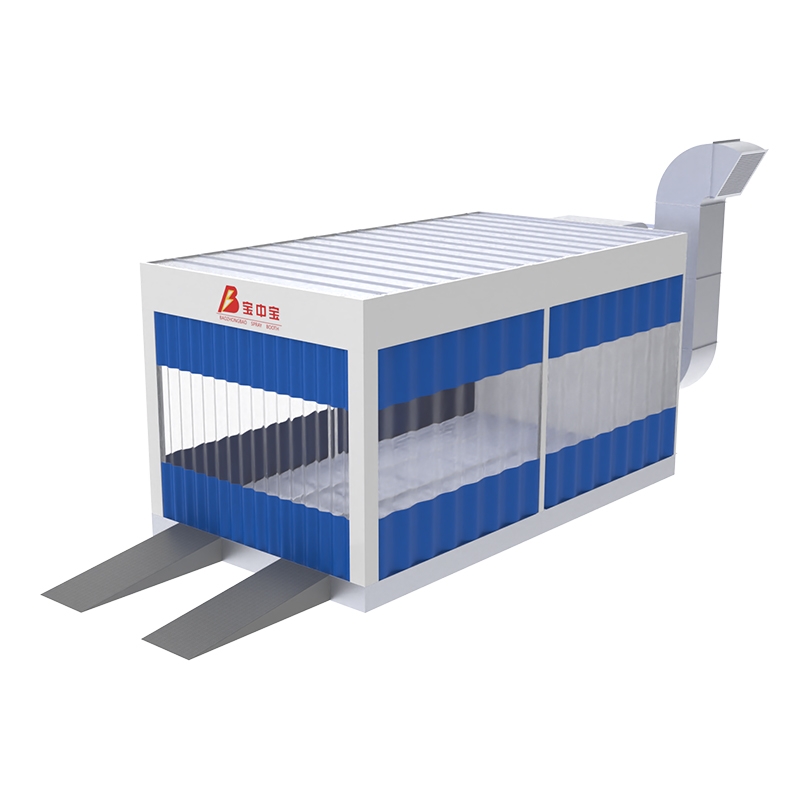

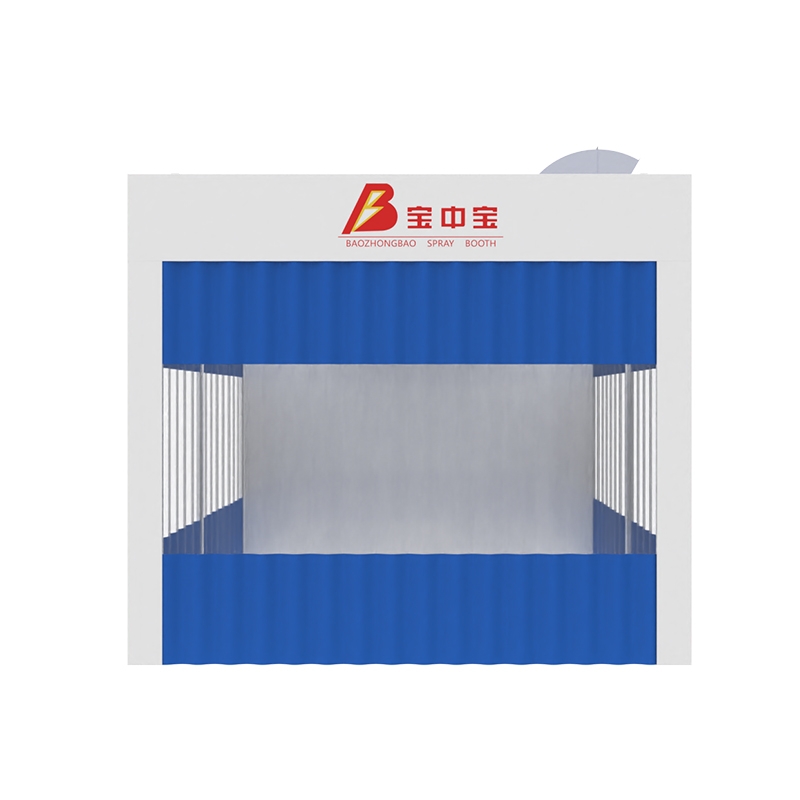

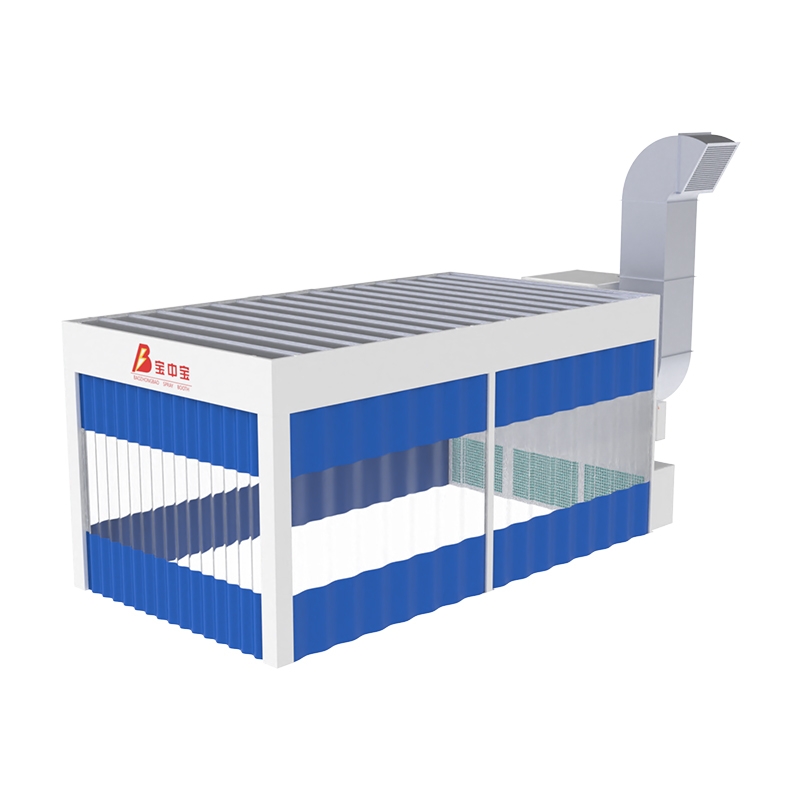

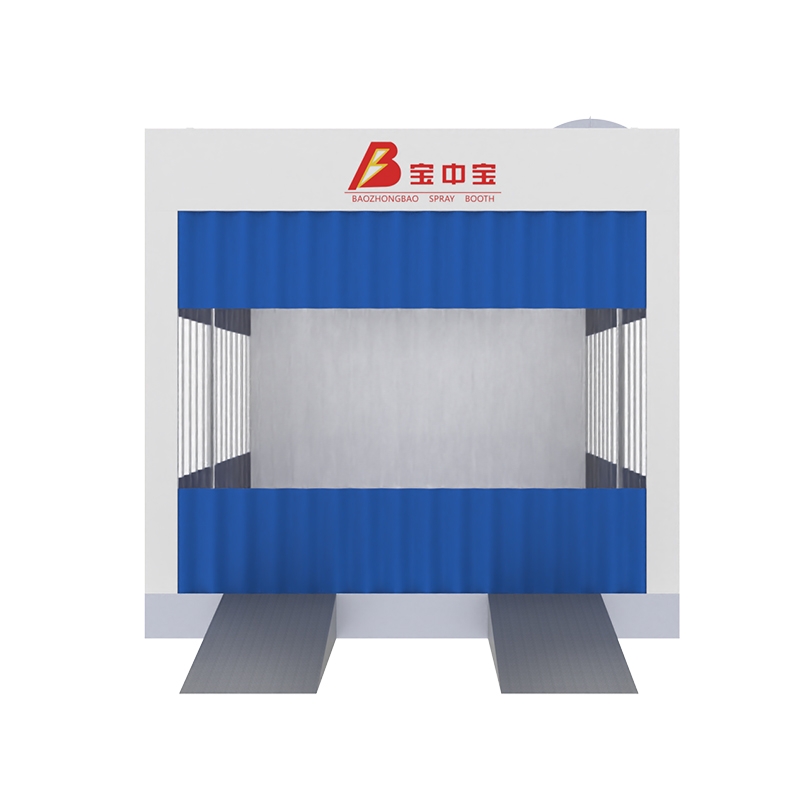

Pre station Spray booth
|
Project\Model |
BZB-6300 |
BZB-6400 |
BZB-6500 |
||
|
Working area size |
6300 × 3450 × 2650 (L × W × H) |
||||
|
Exhaust form |
The rear wall exhausts air to the rear row |
Trench exhaust, full down draft |
Basement exhaust,full down draft |
||
|
Room body system |
Both sides and front side are surrounded by panels + anti-static PVC curtains. There are magnets on both sides and vertical weights on the bottom. The static pressure chamber 450mm height is on the top with deflector and high-quality filter cotton; The rear wall with 50mm Sandwich panel, width: 1150mm, filling material: EPS; The top plate is made of single-layer galvanized steel plate bent; Column or wire rope on ceiling installation |
||||
|
Return air hood |
Galvanized steel panel, filled with rock wool insulation, spray-painted on the surface, and fiberglass cotton on the windward side |
\ |
\ |
||
|
Trench system |
\ |
The angle iron is pre-embedded around the pit, and it is equipped with floor cotton brackets, fiberglass wool and floor grilles. Two rows of floor grilles are made of 30×4 flat iron and twisted steel, load-bearing:600-650KG/wheel |
\ |
||
|
Floor system |
\ |
\ |
Basement hoarding is made of δ=1.2 mm galvanized steel plate bent, 300mm high, assembled with corrosion-resistant square steel frames, paved with 2 rows of floor grilles and 3 rows of pattern plates, floor grilles are made of 30×4 flat iron, load-bearing: 600-650KGS/Wheel; equipped with 2 piece 600mm wide ramps; |
||
|
Cabinet frame |
The frame is made of profiled material, galvanized steel sheet metal bending mask, filled with rock wool insulation material, and powder sprayed onto surface. |
||||
|
Exhaust fan |
YDW series centrifugal fan, model: YDW-5.6 S, air volume: 15500m³/h, power: 5.5KW; Quantity: 1 unit, total exhaust volume: 15500m³/h, equipped with electric damper to adjust the air supply and exhaust ratio. |
||||
|
Lighting system |
6 groups 4 pcs=24 pcs×18 W, LED lamps; Illumination ≥700LUX |
||||
|
Filtering system |
Top filter: F5 filter cotton 560G, filter out dust above 5μm |
||||
|
Under grille/rear wall filtration: fiberglass filter cotton (floor cotton) |
|||||
|
Exhaust air filtration: glass fiber filter cotton + dust filter |
|||||
|
Exhaust duct |
The air duct is made of galvanized sheet bending, connected with mold flanges; straight pipe: 3 sections, 1 unit 90-degree elbow: 1 unit 45-degree elbow |
||||
|
Electronic control system |
Knob switch control, the main components are of Schneider brand;motor direct start control system. Grinding, emergency stop switch, fault alarm, cumulative time, motor overload and overcurrent protection, fan system interlock, etc. |
||||
|
Total power |
6KW |
||||
