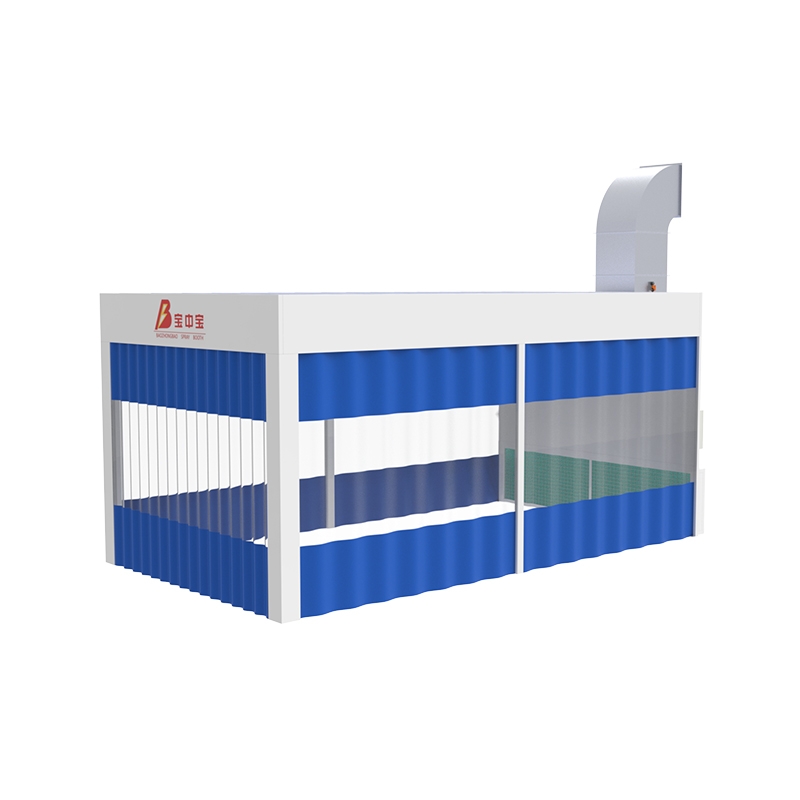

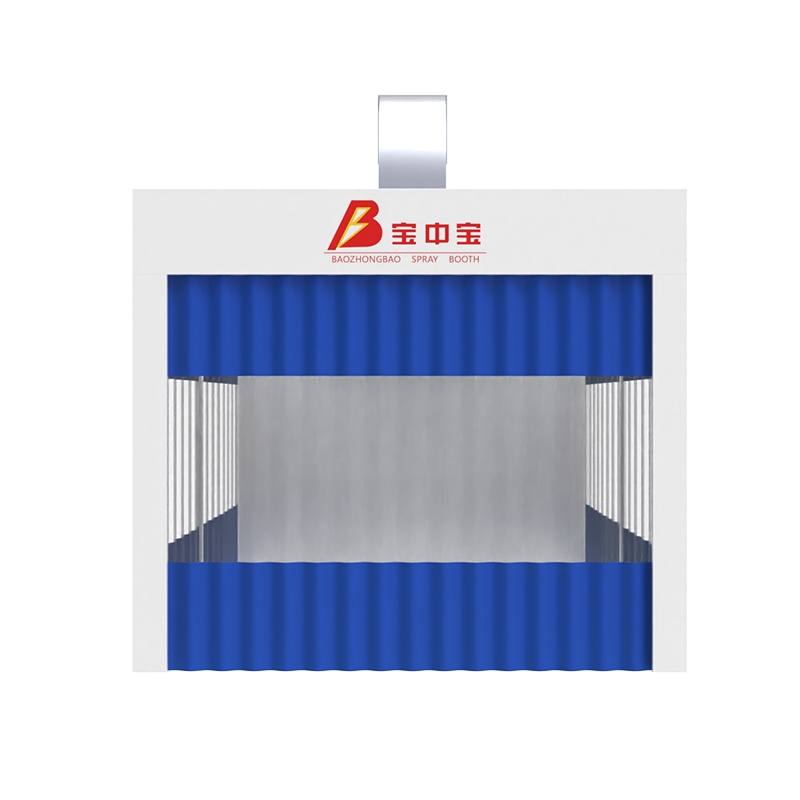

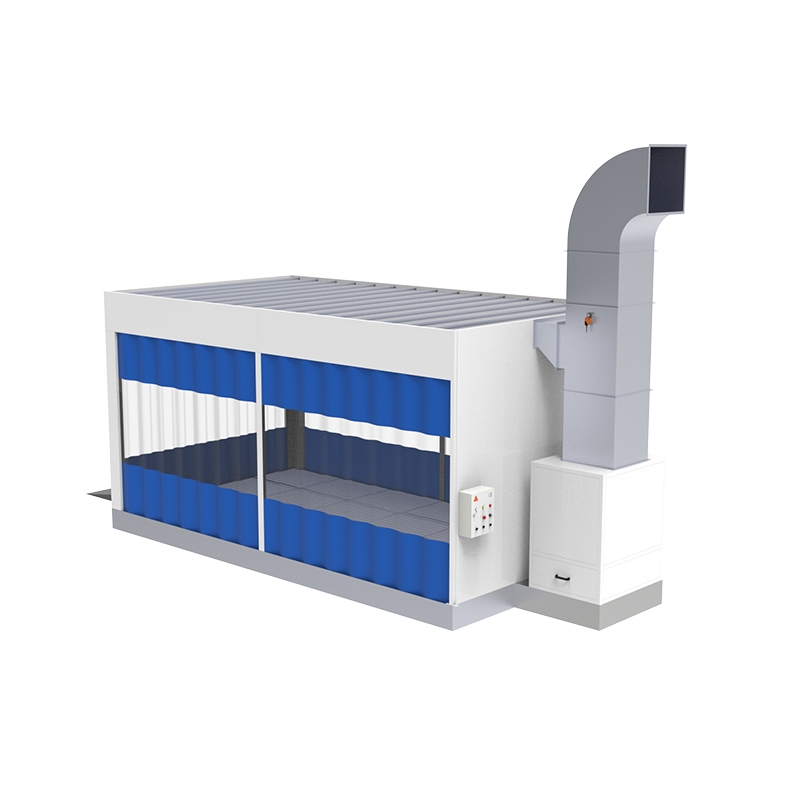

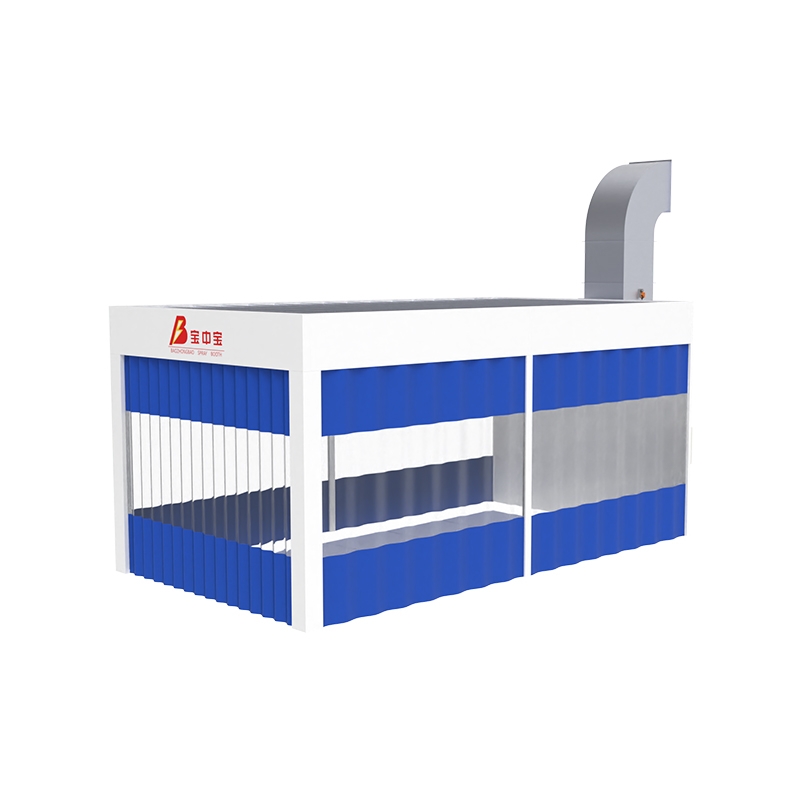

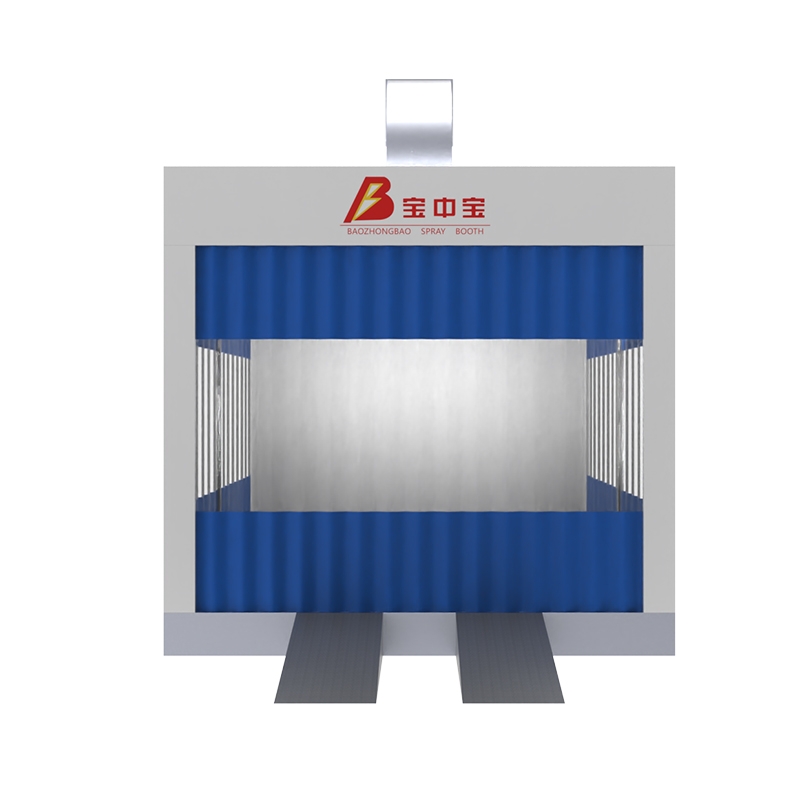

Pre station Spray booth
|
Project\Model |
BZB-6600A |
BZB-6600B |
BZB-6600C |
||
|
Working area size |
6300×3450×2650 (L × W × H) |
||||
|
Exhaust form |
The rear wall exhausts air to the rear row |
Gutter exhaust, sending air to the upper and lower rows |
Floor exhaust air, sent to the upper and lower rows |
||
|
Room body system |
The front and both sides of the room are surrounded by panels + anti-static PVC curtains. There are magnets on both sides and vertical weights on the bottom. The static pressure chamber is on the top of the operating room. Between the static pressure chamber and the operating room, the height is 45 0 mm ., paved with roof net, deflector and high-quality filter cotton; The rear wall with 50mm Sandwich panel, width: 1150mm, filling material: EPS; The top plate is made of single-layer galvanized steel plate bent; Post or wire rope ceiling installation |
||||
|
Return air hood |
Galvanized steel panel, filled with rock wool insulation, spray-painted on the surface, and fiberglass cotton on the windward side |
\ |
\ |
||
|
Trench system |
\ |
The angle iron is pre-embedded around the pit, it is equipped with floor cotton brackets, fiberglass filter and floor grilles. There are two rows of floor grilles are made of 30×4 flat iron and twisted steel, load-bearing: 600-650KGS/Wheel ; |
\ |
||
|
Floor system |
\ |
\ |
Basement hoarding is made galvanized steel plate bent, 300mm high, assembled with corrosion-resistant square steel frames, paved with 2 rows of floor grilles and 3 rows of pattern plates, grilles are made of 30×4 flat iron, load-bearing: 600-650KGS/Wheel; equipped with 2 piece 600mm wide ramps; |
||
|
Cabinet frame |
The frame is made of profiled material, galvanized steel sheet metal bending mask, filled with rock wool insulation material, and powder sprayed onto surface. |
||||
|
Supply fan |
YDW series centrifugal fan, model: YDW-5.6 S, air volume: 15500m³/h, power: 5.5KW; Quantity: 1 unit, total air supply volume: 15500m³/h |
||||
|
Exhaust fan |
YDW series centrifugal fan, model: YDW-5.6 S, air volume: 15500m³/h, power: 5.5KW; Quantity: 1 unit, total exhaust volume: 15500m³/h, exhaust equipped with manual damper |
||||
|
Lighting system |
6 groups×4 pcs = 24 pcs × 18 W, LED lamps; Illumination ≥700LUX |
||||
|
filtering system |
Air inlet filtration: F5 filter cotton 560G, filters out dust above 5μm |
||||
|
Top filter: F5 filter cotton 560G, filter out dust above 5μm ss |
|||||
|
Under grille/rear wall filtration: fiberglass filter cotton (floor cotton) |
|||||
|
Exhaust air filtration: glass fiber filter cotton + dust filter |
|||||
|
Exhaust duct |
The air duct is made galvanized sheet bending,connected with mold flanges; straight pipe: 3 sections, 1 unit 90-degree elbow: 1 unit 45-degree elbow |
||||
|
Electronic control system |
Knob switch control, the main components are of Schneider brand; motor direct start control system. Grinding, emergency stop switch, fault alarm, cumulative time, motor overload and overcurrent protection, fan system interlock, etc. |
||||
|
Total power |
11.5KW |
||||
